Executive Summary

The HP EliteDesk 800 G6 All-in-One represents the pinnacle of HP's business AIO lineup, featuring a larger 27-inch display and 10th Generation Intel processors. Designed for power users, executives, and creative professionals in enterprise environments, it combines substantial computing power with elite security features and exceptional ergonomics. The G6 builds upon its predecessor with enhanced performance, expanded connectivity including Thunderbolt 3, and HP's most advanced BIOS protection to date.

Detailed Specifications

1. Display

• Size: 27-inch diagonal
• Resolution: Full HD (1920 x 1080)
• Panel Type: IPS, Anti-Glare, LED-backlit
• Touch Option: Optional 10-point multi-touch
• Brightness: 250 nits (standard), 400 nits (optional high-brightness panel)
• Color Coverage: 72% NTSC standard, 99% sRGB with optional panel
• Webcam: HP Privacy Camera - 5MP IR camera with physical shutter
• Bezels: Slim micro-edge design on three sides

2. Processor (CPU)

Generation: 10th Generation Intel Core (Comet Lake) Desktop-class

Common Configurations:

• Intel Core i5-10500T (6-core/12-thread, 2.3-3.8 GHz)
• Intel Core i7-10700T (8-core/16-thread, 2.0-4.4 GHz) - Most Common
• Intel Core i9-10900T (10-core/20-thread, 1.9-4.5 GHz) - High Performance
• Intel Core i3-10100T (4-core/8-thread, 3.0-3.8 GHz) - Entry Level

Business Features: Intel vPro with Active Management Technology (AMT) on i5/i7/i9 models

3. Memory (RAM)

• Type: DDR4 SO-DIMM
• Speed: 2933 MHz
• Slots: 2 x user-accessible SO-DIMM slots (rear service door)
• Maximum: 128GB (2x64GB) - exceptionally high for an AIO
• Standard Configurations: 8GB, 16GB, 32GB, or 64GB

4. Storage

• Primary Storage: M.2 2280 PCIe NVMe SSD (Gen3 x4)
• Secondary Storage: Optional second M.2 slot OR 2.5-inch SATA bay
• Maximum Configuration: Dual 2TB NVMe SSDs + 2TB SATA SSD

Common Configurations:

• 256GB/512GB/1TB NVMe SSD (single drive)
• 512GB NVMe SSD + 1TB 7200RPM HDD
• Dual 1TB NVMe SSDs in RAID 0/1 configuration (optional)

Security: Optional Self-Encrypting Drives (SED) with HP Drive Encryption

5. Graphics

• Integrated: Intel UHD Graphics 630 (standard)
• Dedicated Option: NVIDIA GeForce GTX 1650 (4GB GDDR6) - significant upgrade over previous generations
• Video Outputs: HDMI 2.0 out, DisplayPort via USB-C
• Multi-Display: Supports up to 3 external displays with discrete GPU

6. Audio & Communications

• Speakers: Dual front-facing speakers with Audio by Bang & Olufsen
• Microphone: Dual-array digital microphones with AI-based noise reduction
• Audio Features: HP Audio Boost, DTS Studio Sound, HP Noise Cancellation Software
• Audio Jack: Separate headphone and microphone jacks

7. Connectivity & Ports

Front/Side Ports:

• 2 x USB 3.2 Gen 1 Type-A
• 1 x USB 3.2 Gen 2 Type-C (data only)
• Headphone and microphone jacks

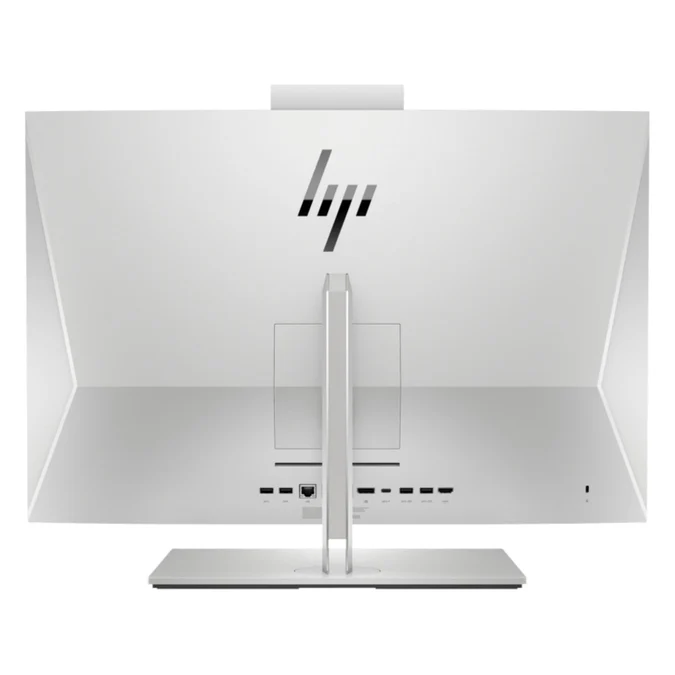

Rear Ports:

• 4 x USB 3.2 Gen 1 Type-A
• 1 x USB 3.2 Gen 2 Type-C with Thunderbolt 3 (40 Gbps, 100W PD)
• 1 x HDMI 2.0 out
• RJ-45 Gigabit Ethernet (Intel I219-LM)
• DC power input

Wireless: Intel Wi-Fi 6 AX201 (802.11ax 2x2) + Bluetooth 5.1

Expansion: Optional HP USB-C/AI Docking Station support

8. Security & Manageability (Elite Features)

• HP Sure Start Gen5: Advanced self-healing BIOS with hardware-based intrusion detection
• HP Tamper Lock: Physical lock for rear service door
• Authentication: TPM 2.0 chip, Windows Hello (IR camera), optional Fingerprint Reader, optional Smart Card Reader
• Camera Privacy: Integrated physical camera shutter with LED indicator
• Management: Intel vPro with AMT 12.0, HP Manageability Integration Kit

9. Ergonomics & Design

• Stand: Fully adjustable - Height (150mm), tilt (-5° to 30°), swivel (±180°), and pivot (portrait mode)
• VESA Mount: 100 x 100 mm compatible (stand is removable)
• Dimensions: ~612.9 x 475.2 x 61.7 mm (without stand)
• Weight: ~12.3 kg (27.1 lbs) with stand
• Build Quality: Aluminum and high-grade plastics with soft-touch finishes
• Cable Management: Integrated cable routing in stand

10. Power & Environmental

• Power Supply: 200W external power adapter
• Energy Efficiency: ENERGY STAR 8.0, EPEAT Gold registered
• Operating Temperature: 5°C to 35°C (41°F to 95°F)

11. Operating System & Support

• Pre-installed OS: Windows 10 Pro 64-bit
• Windows 11 Compatibility: Officially supported and certified
• Recovery: HP Cloud Recovery, HP Image Assistant
• Warranty: Standard 3-year limited warranty with optional upgrades

Key Features & Target Audience

Unique Selling Points:

• 10th Gen Desktop Power: Up to 10-core i9 processor in AIO form factor
• Exceptional Memory Capacity: 128GB maximum for intensive workloads
• Thunderbolt 3 Connectivity: High-speed data transfer and single-cable docking
• Professional Graphics Option: NVIDIA GTX 1650 for design and light rendering work
• Superior Security: HP Sure Start Gen5 provides chip-to-cloud protection

Ideal For:

• Executive and C-level workstations
• Financial analysts and data scientists
• Engineering and architectural firms (with discrete GPU)
• Video editing and content creation (with high-memory configuration)
• Healthcare diagnostic viewing stations
• Command center and control room displays

Limitations:

• No 4K Display Option: Only FHD resolution available on 27-inch panel
• Premium Pricing: Positioned at the high-end of business AIOs
• Limited GPU Upgrades: Only one discrete GPU option available
• External Power Brick: Large external power supply required

Modern Use Assessment (2024)

• Still Highly Capable: 10th Gen processors remain excellent for business workloads
• Security-Ready: HP Sure Start Gen5 keeps it relevant in secure environments
• Upgrade Path: Easy RAM and storage upgrades extend useful life
• Windows 11 Perfect Match: Fully optimized for latest Windows features

Final Verdict:

The HP EliteDesk 800 G6 27-inch AIO represents a peak in business all-in-one design, offering desktop-class performance in a sleek, manageable form factor. Its combination of up to 10-core processors, exceptional 128GB RAM capacity, Thunderbolt 3 connectivity, and HP's most advanced security features makes it ideal for power users who need performance without compromising on security or aesthetics. While lacking 4K resolution, it excels in every other category, serving as a future-proof investment for organizations needing high-performance, secure workstations with minimal desk footprint.
