Executive Summary

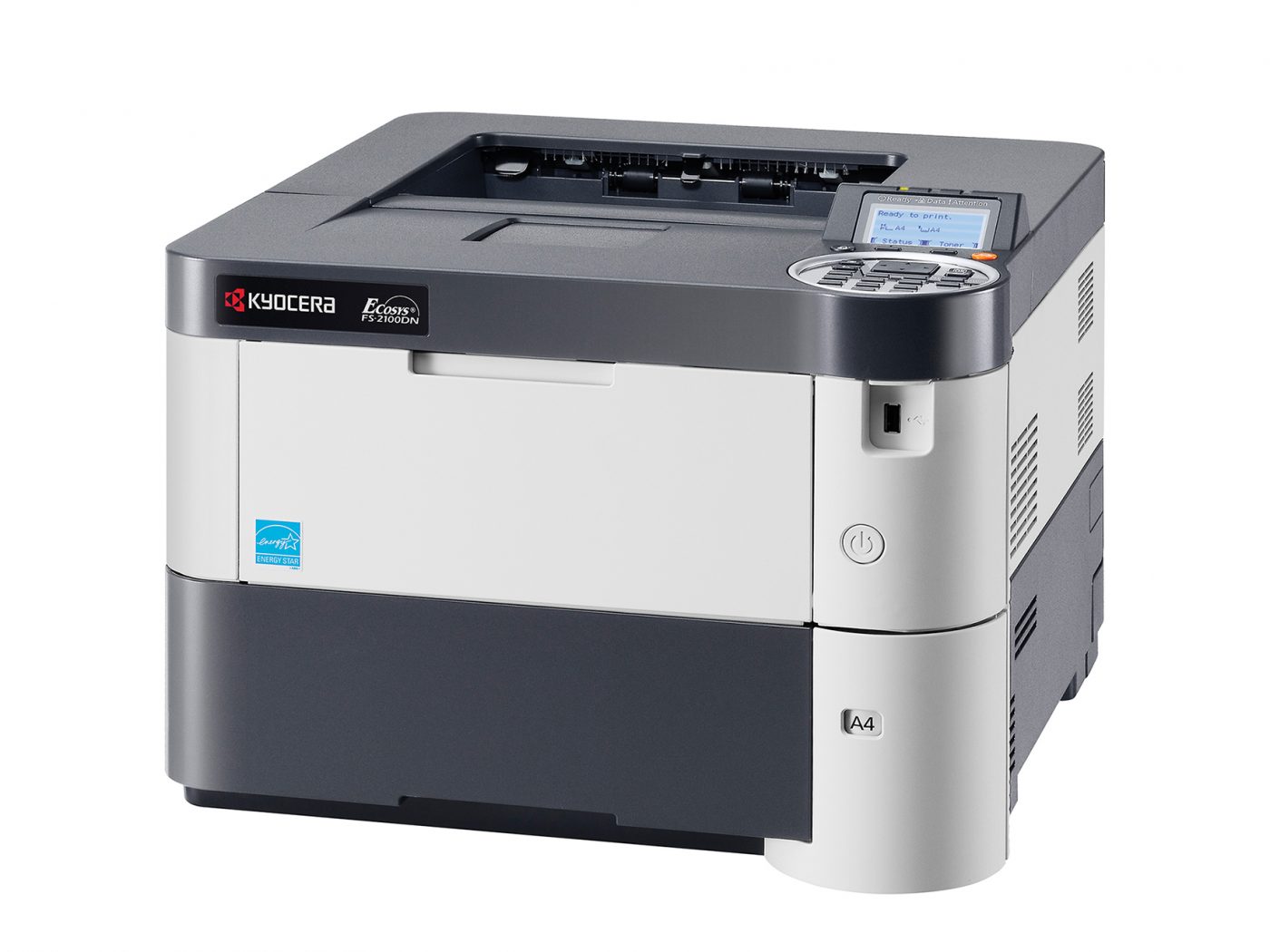

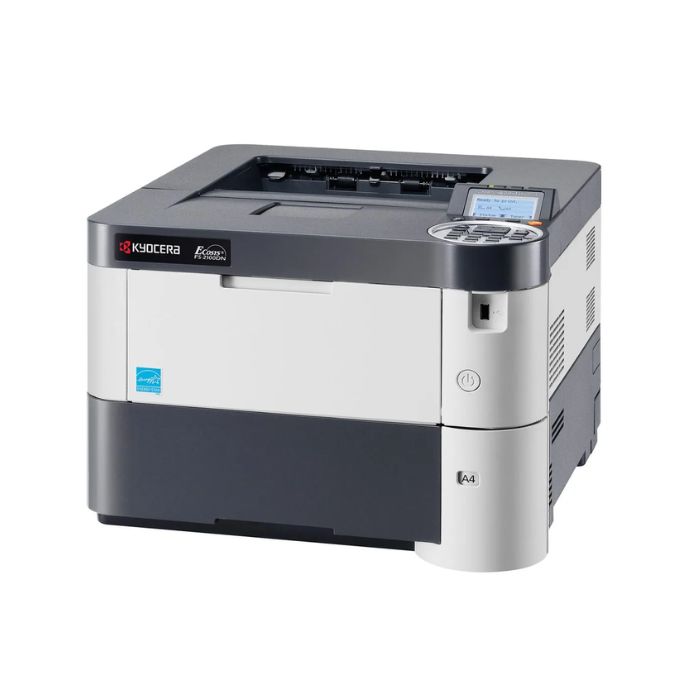

The Kyocera Ecosys FS-2100DN is a high-speed monochrome network laser printer designed for demanding office environments requiring reliable, high-volume black and white printing. Built on Kyocera's innovative Ecosys technology platform, this printer features exceptionally long-life components including a drum unit rated for 100,000 pages, significantly reducing maintenance frequency and total cost of ownership. With a fast 40 pages-per-minute print speed, robust 150,000-page monthly duty cycle, and standard duplex printing, the FS-2100DN is engineered for workgroups and departments with substantial printing needs. Its network-ready design, large paper capacity options, and Kyocera's reputation for durability make it an ideal choice for businesses prioritizing reliability, productivity, and low operating costs in their printing infrastructure.

Detailed Specifications

1. Printing Technology

• Technology: LED Array Printing System
• Print Method: Electro-photographic process with LED exposure
• Print Resolution: 1200 x 1200 dpi (HQ1200 quality enhancement)
• Key Advantage: Ecosys technology provides:
  • Long-life drum (100,000 pages)
  • Low total cost of ownership
  • Reduced environmental impact
  • Consistent print quality over time

2. Print Performance

• Print Speed:
  • Maximum: 40 pages per minute (A4/Letter)
  • First print out: Less than 7.5 seconds
• Warm-up Time: Less than 20 seconds from power on
• Print Resolution:
  • Maximum: 1200 x 1200 dpi
  • Standard: 600 x 600 dpi
  • HQ1200: Enhanced 1200 dpi quality
• Processor & Memory:
  • Processor: 400 MHz
  • Standard Memory: 128 MB (expandable to 640 MB)
  • Hard Drive: Optional 40 GB

3. Paper Handling

• Standard Configuration:
  • Multi-purpose tray: 100 sheets
  • Paper tray 1: 500 sheets
  • Output tray: 250 sheets (face-down)
• Maximum Configuration:
  • Additional 500-sheet tray (optional)
  • Additional 500-sheet tray 3 (optional)
  • Total maximum: 1,500 sheets
• Supported Paper Sizes:
  • A4, A5, A6, B5, B6
  • Letter, Legal, Executive, Folio
  • Envelopes: DL, COM10, C5, C6
  • Custom sizes: 76 x 127 mm to 216 x 356 mm
• Supported Media Types:
  • Plain paper (60-105 g/m²)
  • Recycled paper
  • Heavy paper (up to 163 g/m²)
  • Labels, envelopes, transparencies
  • Card stock (up to 220 g/m²)
• Automatic Duplex: Standard (2-sided printing)

4. Toner System

• Toner Cartridge: TK-1170 (6,000 pages at 5% coverage)
• Drum Unit: DS-1170 (100,000 pages)
• Toner Save Mode: Yes (up to 40% toner savings)
• Key Features:
  • Long-life drum reduces maintenance frequency
  • High-yield toner cartridge available (TK-1170H: 12,000 pages)
  • Separate drum and toner design reduces waste
  • Low melting point toner for energy efficiency

5. Connectivity

• Standard Connectivity:
  • Ethernet: 10/100Base-TX
  • USB 2.0: Device and host ports
• Optional Connectivity:
  • Wireless LAN (802.11b/g/n)
  • IEEE 1284 parallel interface
• Network Protocols:
  • TCP/IP, IPv4, IPv6
  • HTTP, HTTPS, FTP, SMTP
  • SNMP, LDAP, SMB

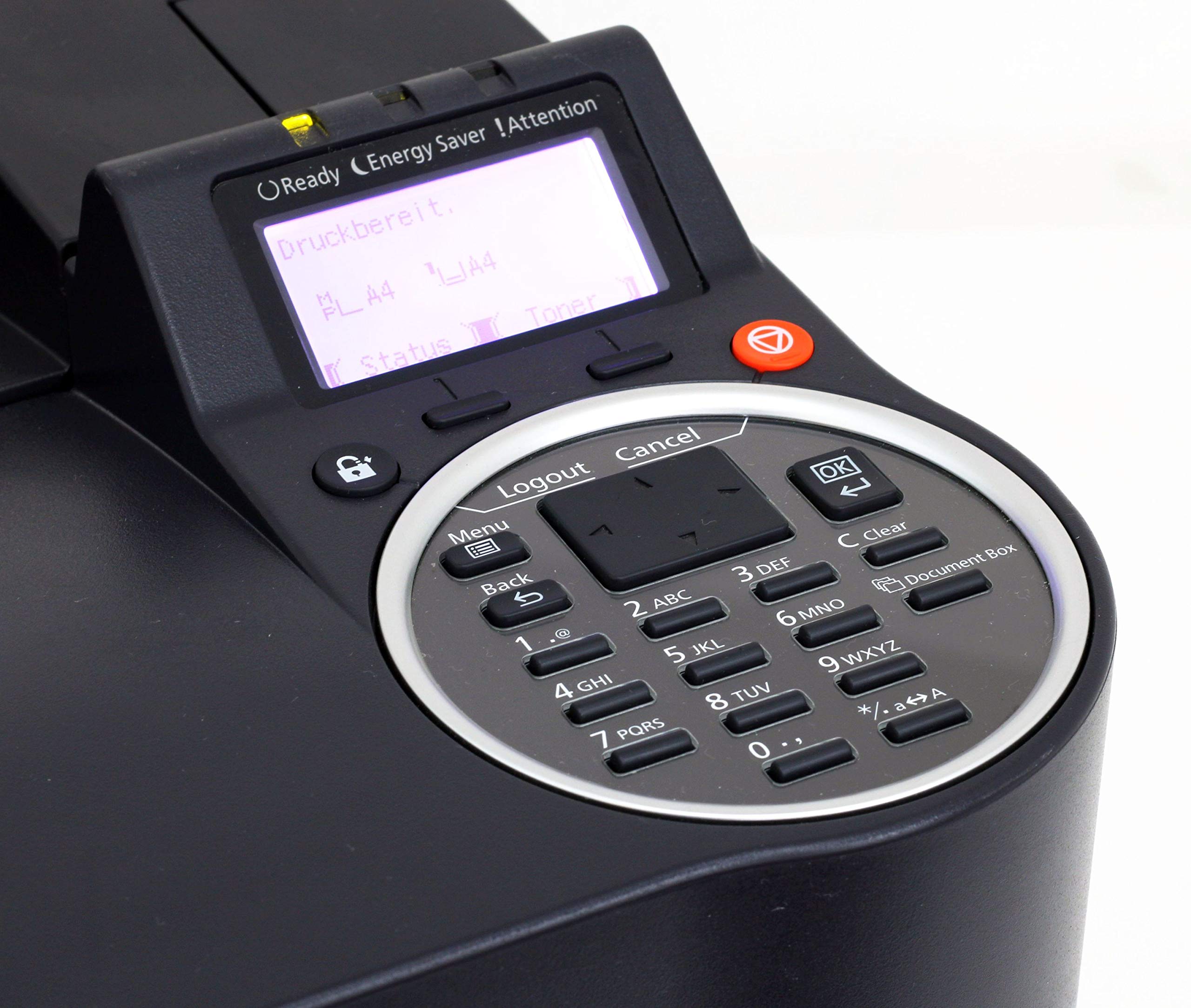

6. Display & Controls

• Display: 2-line, 16-character LCD
• Control Panel:
  • Navigation buttons (up/down/left/right)
  • Function keys (Menu, Job Status, Cancel)
  • LED indicators (Power, Data, Attention)
• User Interface Features:
  • Multi-language support
  • Printer status monitoring
  • Toner level display
  • Paper jam location guidance

7. Physical Specifications

• Dimensions (W x D x H):
  • Basic unit: 400 x 485 x 410 mm
  • With paper trays: 400 x 485 x 635 mm
• Weight: Approximately 17.3 kg (without toner)
• Power Consumption:
  • Printing: Approx. 750W
  • Ready: Approx. 70W
  • Sleep: Approx. 6W
  • Auto-off: Approx. 1.5W
• Noise Level:
  • Printing: Less than 55 dB(A)
  • Standby: Less than 35 dB(A)

8. Software & Compatibility

• Operating Systems:
  • Windows 7, 8, 10, 11
  • Windows Server 2008-2022
  • macOS 10.7 or later
  • Linux (CUPS, LPD/LPRng)
• Included Software:
  • Kyocera Print Supervisor
  • Command Center RX
  • PageScope Utilities
• Security Features:
  • Secure Print
  • IPsec support
  • SSL/TLS encryption
  • User authentication (optional)

Cost Analysis & Value Proposition

Initial Investment vs. Long-term Savings:

• Competitive Initial Price: Mid-range for workgroup printers
• Cost Per Page (CPP):
  • Standard yield: Approximately $0.008-$0.012 per page
  • High yield: Approximately $0.006-$0.009 per page
• Total Cost of Ownership: Among lowest in class due to long-life components
• Value Proposition: High reliability with minimal maintenance requirements

Consumable Economics:

• Toner TK-1170 (6K): $60-80 per cartridge
• Toner TK-1170H (12K): $90-120 per cartridge
• Drum Unit DS-1170 (100K): $150-200 per unit
• Maintenance Kit: Typically required at 300,000 pages

Target Market & Use Cases

Ideal For:

• Medium to Large Offices: Departments with high-volume printing needs
• Educational Institutions: University departments, administrative offices
• Healthcare Facilities: Medical records, administrative documents
• Government Offices: High-volume document processing
• Legal Practices: Document-heavy environments
• Print-for-Pay Services: High-volume commercial printing

Monthly Volume Recommendations:

• Optimal Range: 5,000-30,000 pages per month
• Maximum Capacity: Up to 150,000 pages per month
• Drum Replacement: Every 100,000 pages or approximately 3-20 months

Setup & Maintenance

Initial Setup Process:

• Unpacking & Assembly: 15-20 minutes (install trays, toner, drum)
• Network Configuration: 10-15 minutes via control panel or software
• Driver Installation: 15-20 minutes for network deployment
• Test Printing: Configuration page and test prints

Ongoing Maintenance:

• Regular Maintenance:
  • Paper path cleaning: Monthly
  • Exterior cleaning: As needed
  • Firmware updates: Quarterly
• Component Replacement:
  • Toner: Every 6,000-12,000 pages
  • Drum: Every 100,000 pages
  • Maintenance kit: Every 300,000 pages

Comparison with Similar Models

vs. Kyocera Ecosys FS-2020D:

• FS-2100DN Advantages: Faster (40 vs 20 ppm), higher duty cycle, network standard
• FS-2020D Advantages: Lower cost, more compact, suitable for smaller offices

vs. HP LaserJet Enterprise M506dn:

• Kyocera Advantages: Longer drum life, lower CPP, higher duty cycle
• HP Advantages: Faster first page out, better color touchscreen options

vs. Brother HL-L6400DW:

• Kyocera Advantages: Higher duty cycle, longer component life, more robust construction
• Brother Advantages: Lower initial cost, wireless standard, more compact

Common Issues & Troubleshooting

1. Print Quality Issues:

• Faded or Light Print: Replace toner cartridge, check density settings
• Vertical Lines or Streaks: Clean corona wires, replace drum if necessary
• Toner Smudging: Check fuser temperature, replace fuser assembly

2. Paper Handling Problems:

• Frequent Paper Jams: Clean paper path, check rollers, use recommended paper
• Multi-page Feeding: Adjust paper guides, fan paper before loading
• Tray Misfeeds: Clean pickup rollers, replace if worn

3. Network & Connectivity Issues:

• Network Printing Failures: Check IP configuration, reset network settings
• Print Job Stuck in Queue: Restart printer, clear print queue
• Driver Compatibility Issues: Update to latest drivers, use PCL6 or PostScript

Environmental Benefits

Sustainability Features:

• Ecosys Technology: Long-life components reduce waste
• Energy Efficiency: Energy Star certified, low power modes
• Toner Save Mode: Reduces toner consumption by up to 40%
• Recyclable Components: Toner cartridges and parts recyclable
• Duplex Printing: Standard feature reduces paper consumption

Warranty & Support

Standard Coverage:

• Warranty Period: 1-year limited warranty
• Extended Warranty: Optional service plans available
• Technical Support: Phone support, online resources
• Service Network: Authorized service providers nationwide

Final Recommendation

Buy the Kyocera Ecosys FS-2100DN If:

• You need reliable high-volume monochrome printing (5,000-30,000 pages/month)
• Low total cost of ownership is a priority
• You want minimal maintenance with long-life components
• Network printing capability is required
• Duplex printing is needed for paper conservation
• You need robust paper handling up to 1,500 sheets
• Reliability and uptime are critical for your operations

Consider Alternatives If:

• You print less than 2,000 pages monthly (smaller model may suffice)
• You need color printing capability
• You require scanning/copying functions (consider MFP models)
• Wireless connectivity is essential (optional on FS-2100DN)
• You need advanced finishing options (stapling, hole punching)
• Space is extremely limited (consider more compact models)

Bottom Line:

The Kyocera Ecosys FS-2100DN is a workhorse monochrome laser printer built for environments where reliability, volume, and cost-efficiency intersect. Its standout feature is the Ecosys technology with a 100,000-page drum life, which dramatically reduces maintenance frequency and lowers the total cost of ownership compared to printers with shorter-life components. With a fast 40 ppm print speed, robust 150,000-page monthly duty cycle, and flexible paper handling up to 1,500 sheets, this printer is designed to handle demanding print volumes without compromising performance. While it lacks the touchscreen interfaces and color capabilities of more expensive models, it excels at its core mission: delivering high-quality black and white documents consistently and efficiently. For offices, departments, or businesses with substantial monochrome printing needs who value reliability and low operating costs, the FS-2100DN represents an excellent long-term investment in printing infrastructure.
