Executive Summary

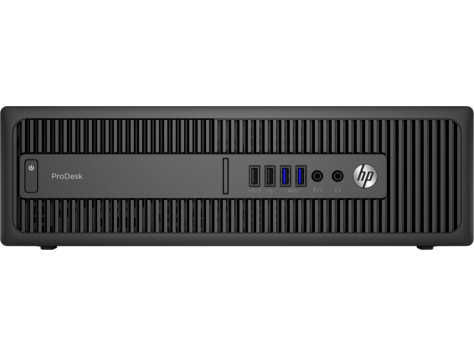

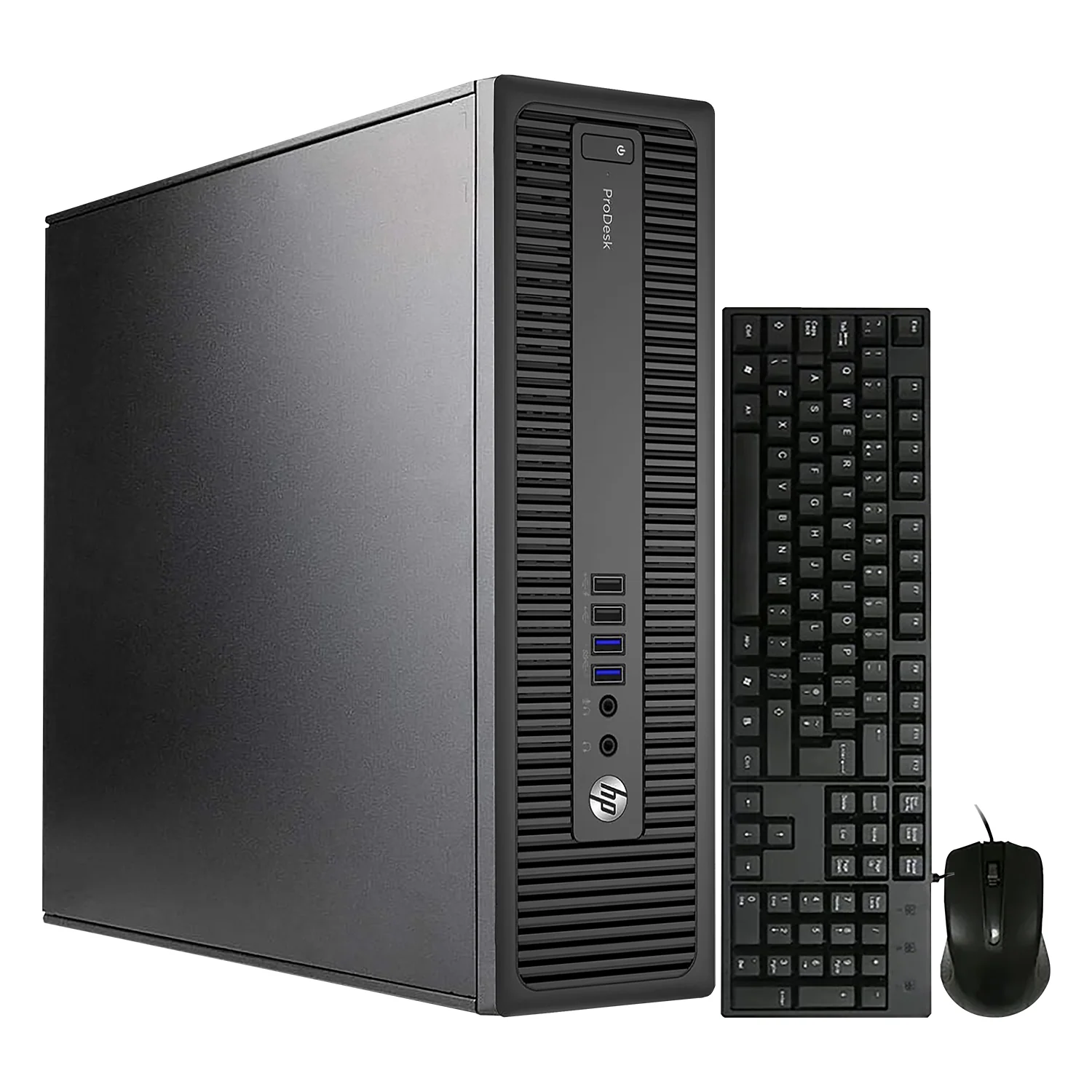

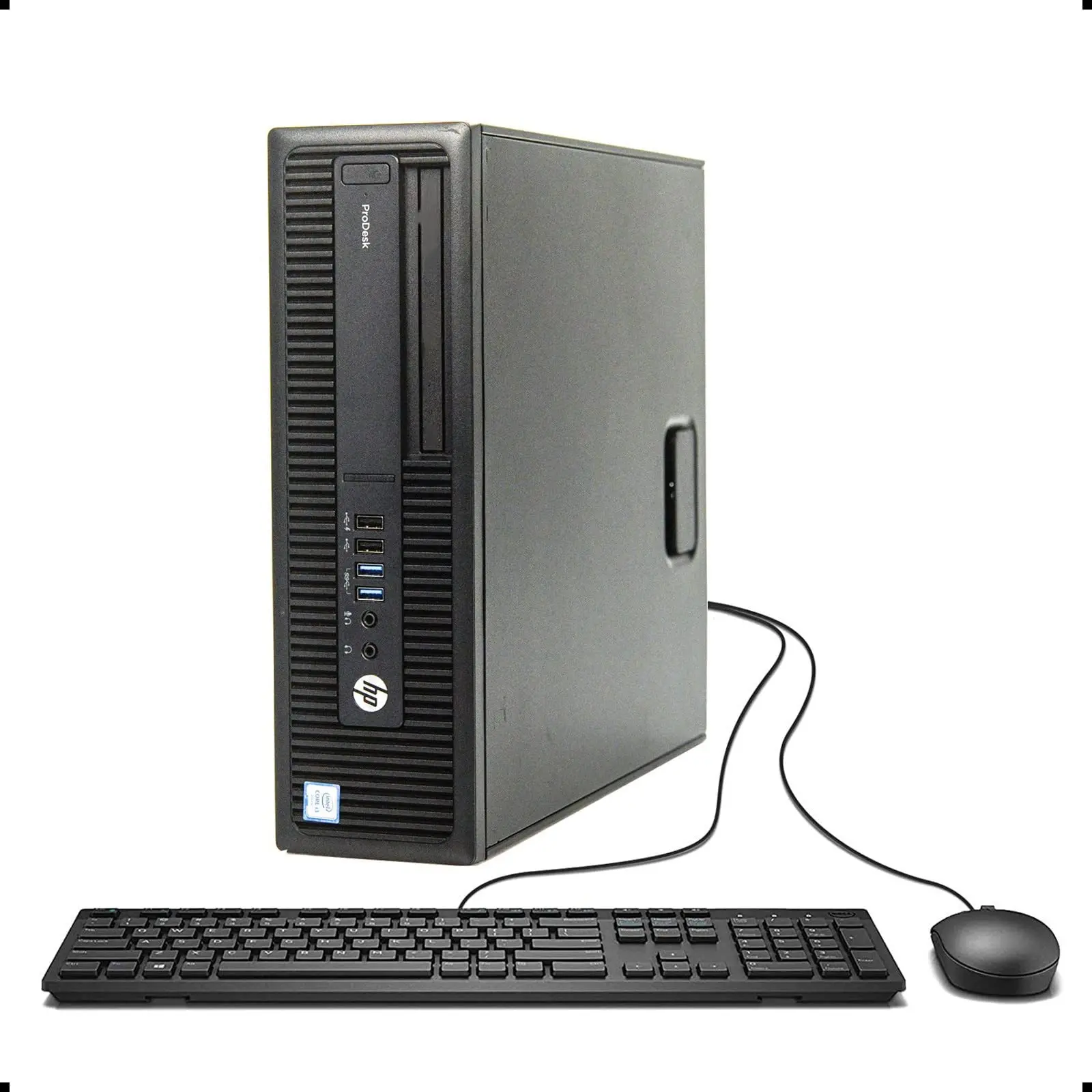

The HP EliteDesk 600 G2 Small Form Factor (SFF) is a legacy business desktop from HP's mid-2010s lineup, representing a transitional period between Windows 7 and Windows 10 deployments. Built with 4th through 6th Generation Intel Core processors, it offers solid performance for basic office tasks and represents HP's enterprise-class build quality of its era.

Detailed Specifications

1. Processor (CPU)

Generation: 4th, 5th, or 6th Generation Intel Core (varies by production date)

Core Architecture:

• 14nm Process (6th Gen): Skylake architecture for improved efficiency
• 22nm Process (4th/5th Gen): Haswell/Broadwell architectures
• Thermal Design Power: 65W standard desktop processors

Common Configurations:

• Intel Core i5-6500 (4 cores, 4 threads, 3.2-3.6 GHz) - Most Common
• Intel Core i7-6700 (4 cores, 8 threads, 3.4-4.0 GHz)
• Intel Core i5-4590 (4 cores, 4 threads, 3.3-3.7 GHz) - Haswell variant
• Intel Core i3-6100 (2 cores, 4 threads, 3.7 GHz)
• Intel Pentium G4400 (2 cores, 2 threads, 3.3 GHz) - Entry Level

Business Features: Intel vPro with Active Management Technology on select i5/i7 models

2. Memory (RAM)

• Type: DDR3L SDRAM (1.35V low voltage)
• Speed: 1600 MHz (some models support 1866 MHz)
• Slots: 4 DIMM slots (standard)
• Maximum Capacity: 32GB (4x8GB)
• Standard Configurations: 4GB, 8GB, or 16GB
• Dual Channel: Supported for optimal performance
• Compatibility: DDR3 (1.5V) not officially supported due to voltage requirements

3. Storage

• Primary Storage: 2.5-inch SATA HDD or SSD
• Secondary Storage: Optional M.2 SATA SSD (2242/2280)
• Additional Storage: Optical drive bay (convertible to additional storage)
• Interface Speed: SATA III (6 Gbps) for both 2.5" and M.2 SATA

Common Configurations:

• 500GB/1TB 7200RPM SATA HDD
• 128GB/256GB SATA SSD
• 500GB HDD + 128GB SSD (dual storage, less common)
• M.2 SATA SSD (typically 128GB as cache drive)

Note: M.2 PCIe NVMe SSDs are NOT supported - only M.2 SATA

4. Graphics

• Integrated: Intel HD Graphics 530 (on 6th Gen CPUs) or HD Graphics 4600 (on 4th/5th Gen)
• Dedicated Options: Supports half-height, low-profile dedicated GPUs including:
  • AMD Radeon R5 430 (2GB DDR3)
  • NVIDIA NVS 310 (512MB DDR3)
  • AMD FirePro W2100 (2GB GDDR3)
• Display Support: Up to 3 displays (with appropriate GPU)
• Video Outputs: DisplayPort 1.2, VGA, HDMI 1.4 (varies by configuration)

5. Connectivity & Ports

Front Ports:

• 2 x USB 3.0 Type-A (5 Gbps)
• 2 x USB 2.0 Type-A
• Headphone/Microphone combo jack
• 9-in-1 media card reader (optional)

Rear Ports:

• 4 x USB 3.0 Type-A
• 2 x USB 2.0 Type-A
• 1 x DisplayPort 1.2
• 1 x VGA port
• 1 x Serial port (optional)
• 1 x RJ-45 Gigabit Ethernet (Intel I217-LM)
• Audio line-out, line-in, and microphone jacks
• PS/2 keyboard/mouse port (on some models)

Wireless: Intel Dual Band Wireless-AC 7265 (802.11ac 1x1) + Bluetooth 4.2 (optional)

6. Expansion & Form Factor

• Chassis Size: ~338 x 379 x 100 mm (13.3 x 14.9 x 3.9 inches)
• Expansion Slots:
  • 1 x PCIe 3.0 x16 slot (half-height/low-profile)
  • 1 x PCIe 2.0 x1 slot
  • 1 x PCI slot (legacy support)
• Drive Bays:
  • 1 x 2.5-inch SATA bay (primary)
  • 1 x M.2 slot (SATA only, 2242/2280)
  • 1 x 5.25-inch optical drive bay (convertible to additional 3.5-inch or 2.5-inch bay)
• Power Supply: 240W 80 PLUS Bronze efficient
• Tool-less Design: Easy access to internal components for service

7. Security & Manageability

• Security Chip: TPM 1.2 (some later models may have TPM 2.0)
• Authentication: Optional Smart Card Reader, optional Fingerprint Reader
• Physical Security: Kensington lock slot, chassis intrusion switch
• Management: HP Client Management Solutions, Intel AMT (on vPro models)
• Encryption: HP Drive Encryption, Microsoft BitLocker support
• Secure Boot: UEFI BIOS with Secure Boot capability

8. Power & Environmental

• Power Supply: 80 PLUS Bronze efficiency (85% efficiency at typical load)
• Power Consumption: Typical 45W, Maximum 150W (without discrete GPU)
• Certifications: ENERGY STAR 6.1, EPEAT Silver
• Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Acoustics: < 32 dB under typical office load

9. Operating System & Support

• Original OS: Windows 7 Professional 64-bit (with downgrade rights from Windows 8.1)
• Windows 10 Compatibility: Officially supported with appropriate drivers
• Windows 11 Compatibility: NOT officially supported (no TPM 2.0, older CPU generation)
• Alternative OS: Windows 8.1 Pro, Linux (with driver limitations)
• Recovery: HP Recovery Manager, Windows recovery options
• Warranty: 3-year limited warranty (now expired on all units)

Key Features & Target Audience

Unique Selling Points:

• Legacy OS Support: Excellent Windows 7 compatibility (important for specialized applications)
• Robust Build Quality: Enterprise-grade components and construction
• Legacy Ports: Serial port, VGA, and optional PS/2 for industrial applications
• Proven Reliability: Mature platform with stable drivers and firmware
• Cost-Effective: Very affordable on refurbished/secondary market

Ideal For:

• Legacy application environments requiring Windows 7
• Educational computer labs on tight budgets
• Thin client or terminal server endpoints
• Industrial control systems with legacy interface requirements
• Secondary workstations or kiosk systems
• Non-profit organizations with limited IT budgets

Limitations:

• No Windows 11 Support: Cannot be officially upgraded to Windows 11
• DDR3 Memory Only: Limited to 32GB maximum
• No NVMe Support: M.2 slot is SATA only
• Aged Security: TPM 1.2 vs. modern TPM 2.0 requirements
• Power Efficiency: Older architecture consumes more power than modern systems

Modern Use Assessment (2024)

• Basic Computing Only: Adequate for web browsing, office applications, and light multitasking
• SSD Essential: Requires SATA SSD upgrade for acceptable modern performance
• Memory Upgrade Recommended: Minimum 8GB RAM recommended for Windows 10
• Security Concerns: Limited security features by modern standards
• End of Life: Outside standard support lifecycle for both hardware and Windows 10

Critical Upgrade Recommendations:

• SSD Installation: Replace any HDD with a SATA SSD for dramatic performance improvement
• RAM Upgrade: Increase to 8GB or 16GB for reasonable Windows 10 performance
• Clean OS Install: Fresh Windows 10 installation recommended for optimal performance
• Security Software: Robust endpoint protection required given limited hardware security

Final Verdict:

The HP EliteDesk 600 G2 SFF is a capable but aging business desktop that has reached the end of its primary lifecycle. While it was a solid performer in its day and features HP's characteristic enterprise build quality, it's now suitable only for specific legacy applications, budget-constrained environments, or non-critical secondary roles.
