Executive Summary

The HP ProDesk 600 G4 Small Form Factor (SFF) is a capable business desktop that brings 8th and 9th Generation Intel Core performance to HP's mainstream business lineup. Positioned below the Elite series but above consumer-grade systems, the G4 offers a compelling mix of performance, manageability, and value.

Detailed Specifications

1. Processor (CPU)

Generation: 8th or 9th Generation Intel Core (Coffee Lake/Refresh)

Core Architecture:

• 14nm++ Process: Refined manufacturing for improved performance/efficiency
• Increased Core Counts: Up to 6 cores on mainstream i5/i7 models
• Thermal Design Power: 65W standard desktop processors (some 35W T-series variants)

Common Configurations:

• Intel Core i5-8500 (6 cores, 6 threads, 3.0-4.1 GHz) - Most Common
• Intel Core i7-8700 (6 cores, 12 threads, 3.2-4.6 GHz)
• Intel Core i5-9500 (6 cores, 6 threads, 3.0-4.4 GHz) - 9th Gen variant
• Intel Core i3-8100 (4 cores, 4 threads, 3.6 GHz)
• Intel Pentium Gold G5400 (2 cores, 4 threads, 3.7 GHz)

Business Features: Intel vPro with Active Management Technology on select configurations

2. Memory (RAM)

• Type: DDR4 SDRAM
• Speed: 2666 MHz (2400 MHz on some configurations)
• Slots: 4 DIMM slots (standard on most models)
• Maximum Capacity: 64GB (4x16GB)
• Standard Configurations: 4GB, 8GB, 16GB, or 32GB
• Dual Channel: Supported for optimal performance
• Error Correction: Non-ECC memory only on standard models

3. Storage

• Primary Storage: M.2 2280 PCIe NVMe Gen3 SSD
• Secondary Storage: 2.5-inch SATA SSD/HDD bay
• Additional Storage: Optional optical drive bay (convertible to additional storage)
• Interface Speed: PCIe 3.0 x4 (up to 3,500 MB/s) for NVMe
• SATA Support: SATA III (6 Gbps) for 2.5-inch drives

Common Configurations:

• 256GB/512GB PCIe NVMe SSD
• 1TB 7200RPM SATA HDD
• 128GB NVMe SSD + 1TB SATA HDD (dual storage configurations)
• 512GB SATA SSD (alternative to NVMe)

Intel Optane Memory: Supported on select configurations for HDD acceleration

4. Graphics

• Integrated: Intel UHD Graphics 630 (on 8th/9th Gen CPUs)
• Dedicated Options: Supports half-height, low-profile dedicated GPUs including:
  • AMD Radeon RX 550 (2GB/4GB GDDR5)
  • NVIDIA Quadro P400 (2GB GDDR5)
  • AMD Radeon R5 430 (2GB DDR3)
• Display Support: Up to 3 displays (with appropriate GPU)
• Video Outputs: DisplayPort 1.2, HDMI 1.4, VGA (on some configurations)

5. Connectivity & Ports

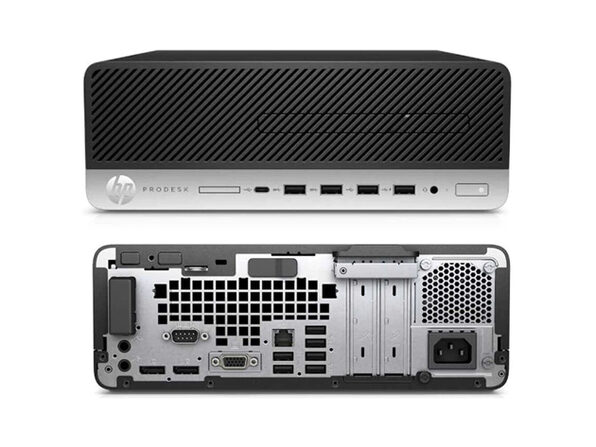

Front Ports:

• 2 x USB 3.1 Gen 1 Type-A (5 Gbps)
• 1 x USB 3.1 Gen 1 Type-C (5 Gbps) - on select configurations
• Headphone/Microphone combo jack
• Multi-format media card reader (optional)

Rear Ports:

• 4 x USB 3.1 Gen 1 Type-A
• 2 x USB 2.0 Type-A
• 1 x DisplayPort 1.2
• 1 x HDMI 1.4
• 1 x VGA port (on some configurations)
• 1 x RJ-45 Gigabit Ethernet (Intel I219-LM)
• Audio line-out, line-in, and microphone jacks
• Serial port (optional on some models)

Wireless: Intel Dual Band Wireless-AC 9560 (802.11ac 2x2) + Bluetooth 5.0 (optional)

6. Expansion & Form Factor

• Chassis Size: ~338 x 379 x 100 mm (13.3 x 14.9 x 3.9 inches)
• Expansion Slots:
  • 1 x PCIe 3.0 x16 slot (half-height/low-profile)
  • 1 x PCIe 3.0 x1 slot
  • 1 x PCI slot (legacy support on some models)
• Drive Bays:
  • 1 x M.2 2280 slot (PCIe NVMe or SATA)
  • 1 x 2.5-inch SATA bay
  • 1 x 5.25-inch optical drive bay (optional, convertible to additional storage)
• Power Supply: 180W-240W 80 PLUS Gold efficient
• Tool-less Design: Tool-free access to internal components for service

7. Security & Manageability

• Security Chip: TPM 2.0 (discrete)
• HP Sure Start Gen4: Self-healing BIOS with intrusion detection
• HP BIOSphere: Secure BIOS architecture
• Authentication: Optional Smart Card Reader, optional Fingerprint Reader
• Physical Security: Kensington lock slot, chassis intrusion detection
• Management: HP Manageability Integration Kit, Intel AMT (on vPro models)
• Encryption: HP Drive Encryption, Microsoft BitLocker support
• Secure Boot: UEFI BIOS with Secure Boot capability

8. Power & Environmental

• Power Supply: 80 PLUS Gold efficiency (87%+ efficiency at typical load)
• Power Consumption: Typical 35W, Maximum 130W (without discrete GPU)
• Certifications: ENERGY STAR 7.1, EPEAT Silver
• Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Acoustics: < 28 dB under typical office load

9. Operating System & Support

• Original OS: Windows 10 Professional 64-bit
• Windows 11 Compatibility: Officially supported via upgrade (TPM 2.0 + 8th/9th Gen CPU)
• Alternative OS: Windows 10 Home, Linux (with driver limitations)
• Recovery: HP Cloud Recovery, HP Image Assistant
• Warranty: 3-year limited warranty standard (varies by region)

Key Features & Target Audience

Unique Selling Points:

• Six-Core Performance: 8th/9th Gen processors with up to 6 cores in mainstream business desktop
• HP Business Features: Sure Start Gen4 BIOS protection in Pro series
• Good Expandability: 4 RAM slots and multiple storage options in SFF chassis
• Management Ready: HP Manageability Integration Kit for enterprise deployment
• Proven Reliability: HP's business-class components and testing

Ideal For:

• Corporate office workstations
• Educational institutions and computer labs
• Healthcare clinic and dental office workstations
• Small to medium business environments
• Government and municipal offices
• Call centers and shared workstations

Limitations:

• Limited GPU Support: Half-height cards only, limited by PSU capacity
• No Thunderbolt: USB-C limited to 5 Gbps speeds
• Older Security Generation: Sure Start Gen4 vs. newer Gen5/6/7 in later models
• Mid-range Positioning: Fewer premium features than Elite series
• Aging Platform: 5+ years old at time of assessment

Modern Use Assessment (2024)

• Still Competent: 8th/9th Gen processors remain capable for office productivity
• Windows 11 Ready: Fully compatible with official upgrade path
• SSD Essential: Requires NVMe or SATA SSD for acceptable performance
• Memory Adequacy: 16GB RAM recommended for contemporary workloads
• Refurbishment Candidate: Excellent value when refurbished with SSD/RAM upgrades

Critical Upgrade Recommendations:

• SSD Upgrade: NVMe SSD installation dramatically improves performance
• RAM Increase: Upgrade to 16GB or 32GB for modern multitasking
• OS Refresh: Clean Windows 10 or 11 installation recommended
• GPU Consideration: Basic low-profile GPU if additional display outputs needed

Comparison with Contemporary Models:

• vs. EliteDesk 800 G4: Fewer premium features but similar core performance
• vs. ProDesk 600 G5: Latter offers 9th Gen refresh and minor improvements
• vs. Dell OptiPlex 7060: Comparable specifications, different management ecosystems
• vs. Lenovo ThinkCentre M720: Similar market positioning and capabilities

Final Verdict:

The HP ProDesk 600 G4 SFF is a solid, reliable business desktop that represents excellent value in the refurbished market. Its 8th/9th Generation Intel Core processors provide ample performance for typical office workloads, and its inclusion of TPM 2.0 ensures Windows 11 compatibility, extending its useful life.
