Detailed Technical Specifications

Product Information

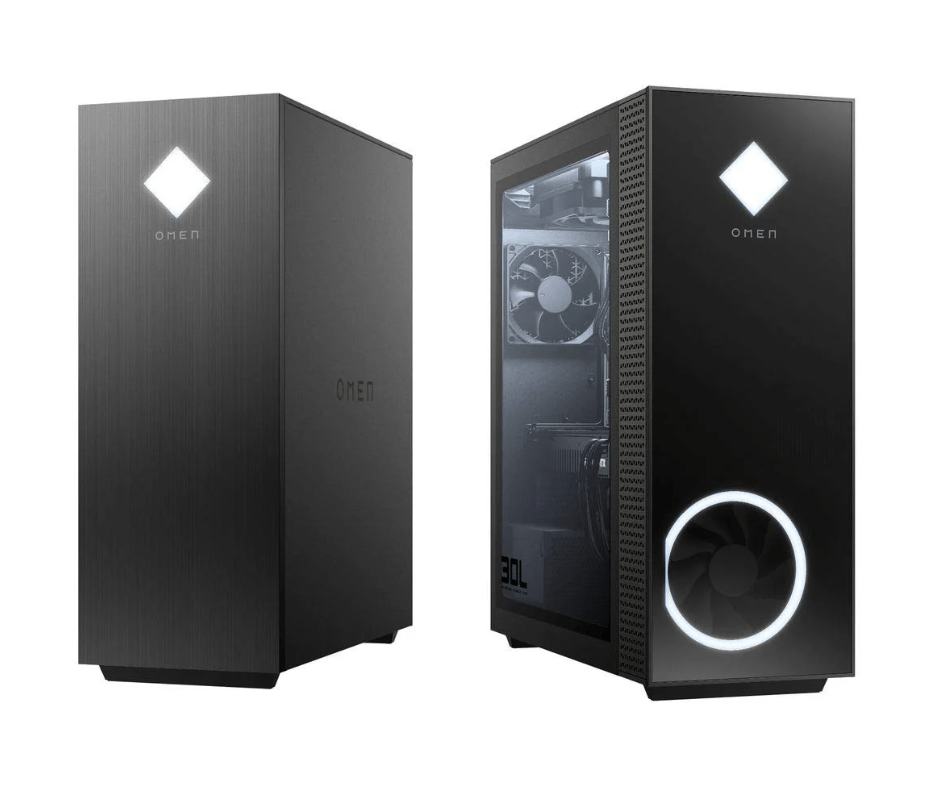

• Product Name: HP OMEN 30L Gaming Desktop PC
• Model: GT13-0070
• Brand: HP
• Series: OMEN 30L Series (Premium Gaming Desktop)
• Category: Gaming Desktop PC
• Release Year: 2020
• Form Factor: Mid-Tower
• Dimensions: 15.2 x 6.5 x 16.2 inches (386 x 165 x 411 mm)
• Weight: 24.3 lbs (11.02 kg)
• Color: Shadow Black

Processor (CPU)

• Model: Intel Core i7-10700KF
• Generation: 10th Generation (Comet Lake)
• Cores/Threads: 8 cores, 16 threads
• Base Frequency: 3.8 GHz
• Max Turbo Frequency: 5.1 GHz (single core)
• All Core Turbo: 4.7 GHz (all 8 cores)
• Cache: 16MB Intel Smart Cache
• Socket: LGA 1200
• TDP: 125W
• Architecture: 14nm
• Intel Technologies: Intel Turbo Boost Max 3.0, Hyper-Threading, VT-x, VT-d, AES-NI
• Note: "KF" variant indicates unlocked for overclocking and no integrated graphics
• Other Possible CPUs: i7-10700K, i9-10900K, i9-10850K (depending on configuration)

Graphics (GPU)

• Model: NVIDIA GeForce RTX 3080 (Founders Edition or OEM variant)
• Memory: 10GB GDDR6X
• Memory Interface: 320-bit
• CUDA Cores: 8704
• Base Clock: 1440 MHz
• Boost Clock: 1710 MHz
• Ray Tracing Cores: 2nd Generation
• Tensor Cores: 3rd Generation
• PCIe Interface: PCIe 4.0 x16
• Power Connector: 2x 8-pin PCIe (or 12-pin on Founders Edition)
• Outputs: 3x DisplayPort 1.4a, 1x HDMI 2.1
• Max Resolution: 7680x4320 @ 60Hz (8K)
• NVIDIA Technologies: DLSS, Ray Tracing, NVIDIA Reflex, NVIDIA Broadcast
• VR Ready: Yes

Memory (RAM)

• Capacity: 16GB DDR4 (as configured)
• Type: DDR4-2933 (non-ECC, unbuffered)
• Slots: 4x DIMM slots (typically 2x8GB configuration)
• Maximum Supported: Up to 64GB (4x16GB) officially (may support 128GB with 32GB modules)
• Memory Technology: Dual-channel architecture (recommended for performance)
• Speed: 2933MHz (supports 2666MHz, 2933MHz, and XMP profiles)
• Upgrade Note: Additional RAM should match existing specifications for optimal performance

Storage

• Primary Storage: 1TB PCIe NVMe SSD
• Secondary Storage: 1TB 7200RPM SATA HDD (3.5-inch)
• SSD Interface: PCIe Gen 3.0 x4 (NVMe)
• SSD Form Factor: M.2 2280
• HDD Interface: SATA 6Gb/s
• Storage Bays:
  • 1x M.2 slot (occupied by NVMe SSD)
  • 1x 3.5-inch internal bay (occupied by HDD)
  • 1x 2.5-inch internal bay (available)
• Storage Expansion: Can support multiple storage devices (M.2 + 3.5-inch + 2.5-inch)
• RAID Support: Not supported by default (depends on motherboard configuration)

Operating System

• Pre-installed: Windows 11 Pro 64-bit
• Recovery: HP Cloud Recovery, HP Recovery Manager
• Windows Features: BitLocker, Remote Desktop, Hyper-V, Group Policy, Domain Join
• Gaming Features: DirectX 12 Ultimate, Auto HDR, DirectStorage
• Upgrade Path: Already running Windows 11 Pro

Connectivity

• Ethernet: 2.5 Gigabit Ethernet (Realtek RTL8125BG)
• Wireless: Intel Wi-Fi 6 AX200 (802.11ax, 2x2) + Bluetooth 5.1
• Wi-Fi Speed: Up to 2.4 Gbps
• Bluetooth: Bluetooth 5.1 with A2DP, LE support
• Wake-on-LAN: Supported
• LAN Features: Wake on LAN, PXE boot, Energy Efficient Ethernet

Front Panel Ports

• USB 3.2 Gen 1: 2x (Type-A, 5 Gbps)
• USB 3.2 Gen 2: 1x (Type-C, 10 Gbps)
• Headphone Jack: 1x 3.5mm
• Microphone Jack: 1x 3.5mm
• Power Button: With RGB LED indicator
• SD Card Reader: Not available on this model

Rear Panel Ports

• USB 3.2 Gen 1: 4x (Type-A, 5 Gbps)
• USB 3.2 Gen 2: 1x (Type-A, 10 Gbps)
• USB 2.0: 2x (Type-A, 480 Mbps)
• Ethernet: 1x RJ-45 (2.5 Gigabit)
• Audio: 5x 3.5mm jacks (Line-in, Line-out, Microphone, Rear Speaker, Center/Subwoofer)
• Display Outputs (from GPU):
  • 3x DisplayPort 1.4a
  • 1x HDMI 2.1
• Antenna Connectors: 2x for Wi-Fi/Bluetooth antennas
• PS/2: None

Expansion Slots

• PCIe Slots:
  • 1x PCIe x16 (Gen 3.0) - occupied by RTX 3080
  • 1x PCIe x16 (Gen 3.0, electrical x4) - available
  • 1x PCIe x1 (Gen 3.0) - available
• M.2 Slots:
  • 1x M.2 2280 (PCIe Gen 3.0 x4) - occupied
• Drive Bays:
  • 1x 3.5-inch internal (occupied)
  • 1x 2.5-inch internal (available)

Audio

• Audio Codec: Realtek ALC3851
• Channels: 7.1 channel surround sound support
• Audio Technologies: DTS:X Ultra, HP Audio Boost
• Front Panel Audio: Headphone amplifier with enhanced audio quality

Cooling System

• CPU Cooler: OMEN Tempest 120mm liquid cooler
• Case Fans:
  • Front: 1x 120mm intake fan with RGB lighting
  • Rear: 1x 120mm exhaust fan
• Cooling Technology: OMEN Tempest Cooling with dedicated airflow zones
• Fan Control: OMEN Gaming Hub software for fan speed control
• Thermal Design: Optimized airflow with mesh front panel and top vent

Power Supply

• Type: Internal power supply
• Wattage: 750W 80 PLUS Platinum certified
• Efficiency: 80 PLUS Platinum (90% efficiency at typical load)
• Input Voltage: 100-240V AC, 50-60Hz
• Modular: Non-modular (fixed cables)
• Power Connectors:
  • 1x 24-pin ATX motherboard
  • 2x 8-pin CPU
  • Multiple PCIe 8-pin (for GPU)
  • Multiple SATA power connectors

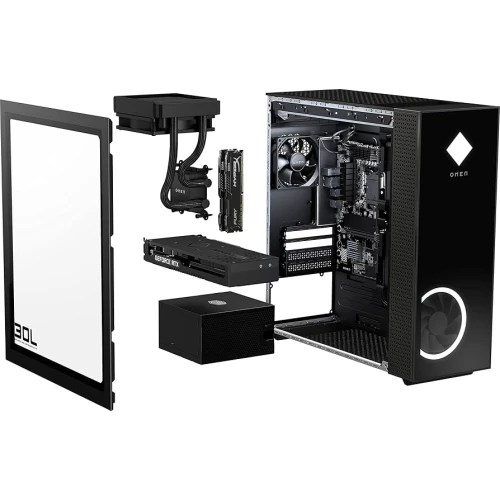

Chassis & Design

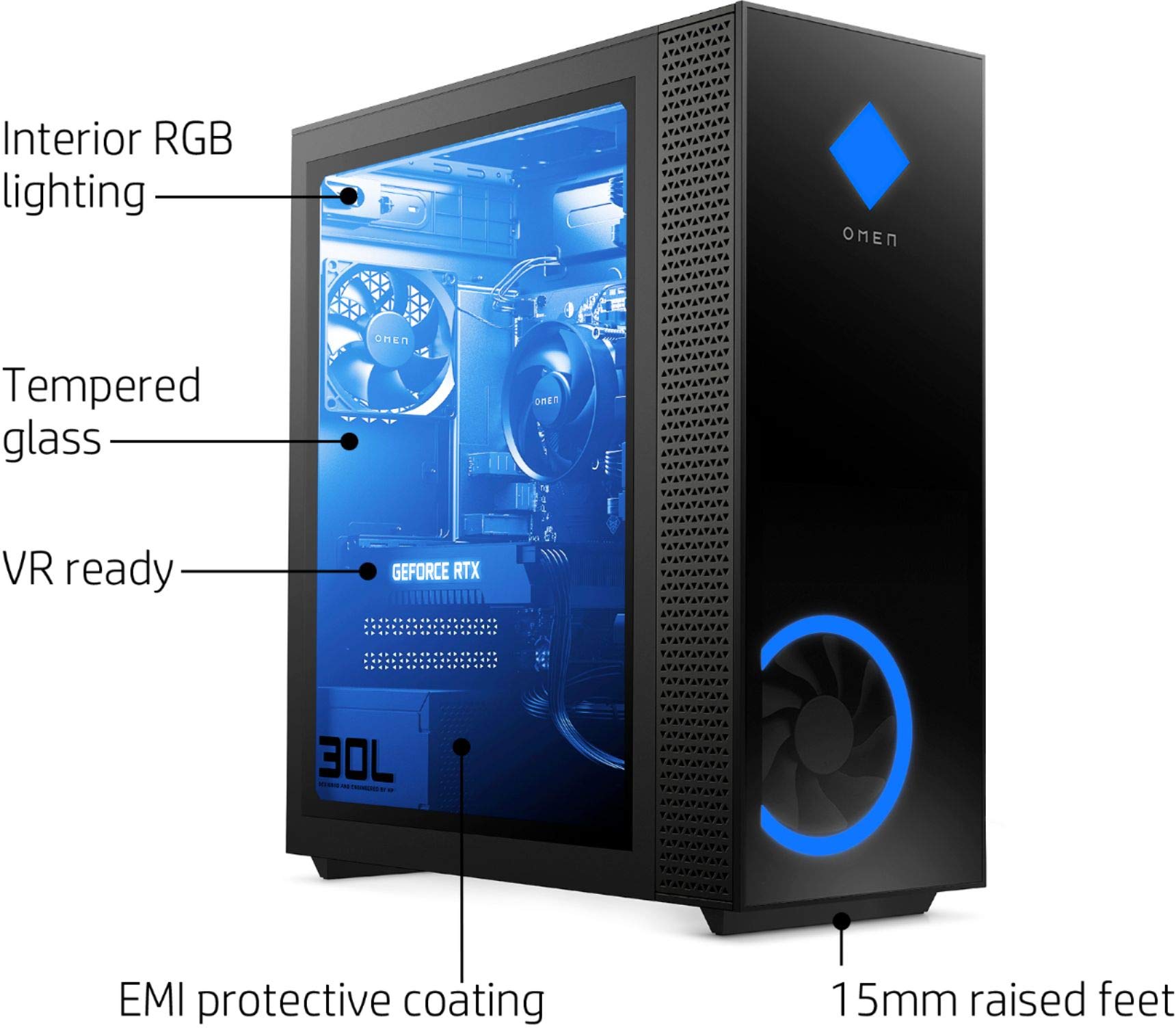

• Chassis Type: Mid-Tower with tempered glass side panel
• Tool-less Design: Thumb screws for side panel
• Ventilation: Mesh front panel and top vent for optimal airflow
• Color: Shadow Black with RGB accents
• Lighting: RGB front fan and OMEN logo with customizable colors via OMEN Gaming Hub
• Build Quality: Steel chassis with tempered glass side panel
• Cable Management: Basic cable routing with tie-down points

Software & Gaming Features

• Pre-installed Software: OMEN Gaming Hub, HP Support Assistant, NVIDIA GeForce Experience
• Gaming Hub Features: Performance control, lighting control, game optimization, network booster
• NVIDIA Software: GeForce Experience with Game Ready drivers, ShadowPlay, Ansel
• Streaming Features: NVIDIA Broadcast (noise removal, virtual background)
• Game Optimization: OMEN Gaming Hub can optimize game settings automatically

Environmental Specifications

• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Storage Temperature: -40°F to 140°F (-40°C to 60°C)
• Relative Humidity: 20% to 80% (non-condensing)
• Altitude: Up to 10,000 feet (3,048 meters)
• Acoustic Noise: 30 dBA typical (idle), 42 dBA under gaming load

Warranty & Support

• Standard Warranty: 1-year limited warranty (parts and labor)
• Support Hours: 24/7 online and phone support
• Onsite Service: Optional (varies by region)
• Extended Warranty: Available up to 3 years
• Accidental Damage Protection: Optional HP Care Pack

Certifications & Compliance

• ENERGY STAR certified
• EPEAT registered (varies by configuration)
• RoHS compliant
• WEEE compliant
• FCC Class B certified
• CE Marking
• WHQL certified for Windows 11

What's in the Box

• HP OMEN 30L Gaming Desktop PC
• Power Cord
• Wi-Fi antennas (2x)
• Documentation Kit
• Warranty Card
• Keyboard and Mouse (OMEN gaming peripherals)

Performance & Gaming Capabilities

• Target Use: High-end gaming, 4K gaming, content creation, streaming, VR
• Recommended For: 1440p and 4K gaming, streaming, video editing, 3D rendering
• Gaming Performance: Excellent for 1440p gaming, very good for 4K gaming
• Ray Tracing: Excellent performance with Ray Tracing enabled
• DLSS Support: Yes (AI-powered upscaling for better performance)
• VR Ready: Yes (compatible with Oculus Rift, HTC Vive, Valve Index)
• Not Recommended For: Extreme competitive gaming at 1080p (overkill)

Upgrade Potential

• CPU Upgrade: Supports up to Intel Core i9-10900K (same generation)
• GPU Upgrade: Can support up to RTX 3090 with current PSU
• RAM Upgrade: Up to 64GB DDR4 (officially)
• Storage Upgrade: Additional M.2 slot may be available on some motherboards
• PSU Upgrade: Standard ATX PSU compatibility
• Cooling Upgrade: Limited space for larger AIO liquid coolers

Important Notes & Recommendations

• Memory Configuration: 16GB is good for gaming; consider 32GB for heavy multitasking and content creation
• Storage Strategy: Use NVMe SSD for OS and games, HDD for media and backups
• Power Supply: 750W Platinum PSU is excellent for RTX 3080 and allows for some overclocking
• Cooling: Liquid cooling ensures good CPU thermals; monitor GPU temperatures under load
• Gaming Setup: Pair with 1440p 144Hz or 4K 60Hz monitor for best experience
• Overclocking: CPU is unlocked (K series) for overclocking via BIOS or OMEN Gaming Hub
• Compared to 25L: 30L has better cooling and higher-end components

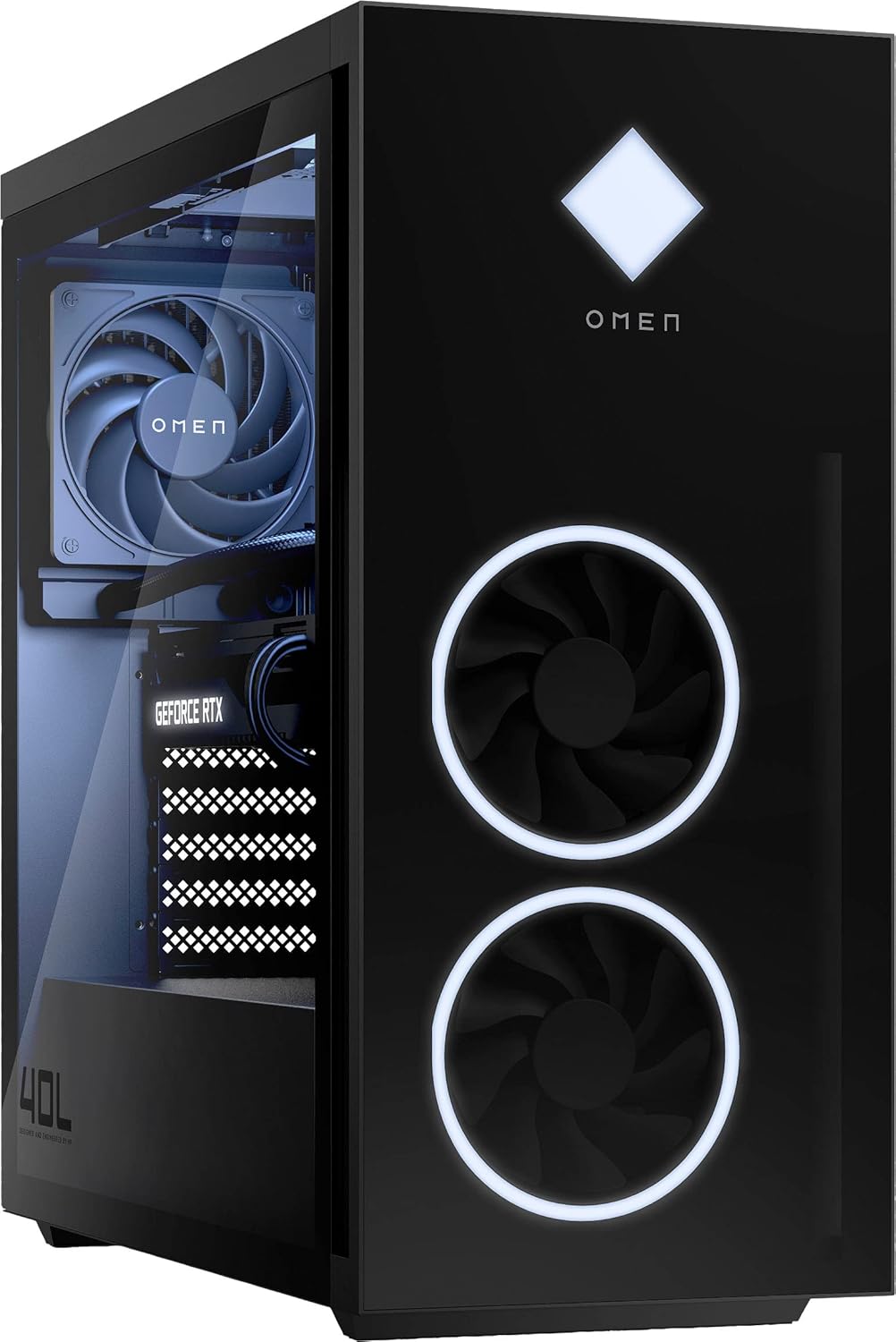

• Compared to 40L: 30L is more compact but has less expansion room
• Value Proposition: High-end gaming performance in a relatively compact form factor
• Windows 11 Pro: Includes business features useful for power users and streamers
