Executive Summary

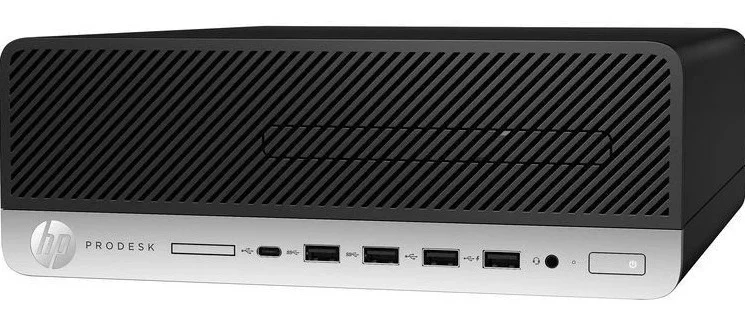

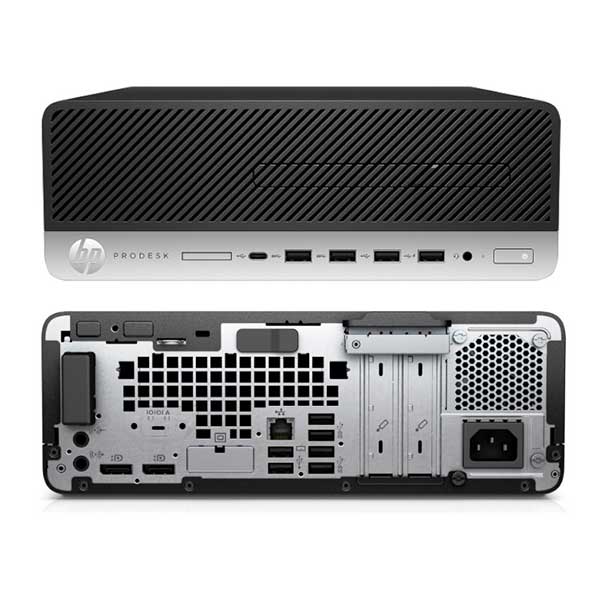

The HP ProDesk 600 G5 Small Form Factor (SFF) is a refined iteration of HP's mainstream business desktop lineup, featuring 9th Generation Intel Core processors with incremental improvements over its G4 predecessor. Positioned as a reliable workhorse for corporate environments, the G5 delivers solid performance for office productivity, business applications, and general computing tasks.

Detailed Specifications

1. Processor (CPU)

Generation: 9th Generation Intel Core (Coffee Lake Refresh)

Core Architecture:

• 14nm++ Process: Further refined manufacturing process for improved efficiency
• Increased Clock Speeds: Higher base and turbo frequencies compared to 8th Gen counterparts
• Thermal Design Power: 65W standard desktop processors (35W T-series variants available)

Common Configurations:

• Intel Core i5-9500 (6 cores, 6 threads, 3.0-4.4 GHz) - Most Common
• Intel Core i7-9700 (8 cores, 8 threads, 3.0-4.7 GHz)
• Intel Core i9-9900 (8 cores, 16 threads, 3.1-5.0 GHz) - High Performance variant
• Intel Core i3-9100 (4 cores, 4 threads, 3.6-4.2 GHz)
• Intel Pentium Gold G5400 (2 cores, 4 threads, 3.7 GHz) - Entry Level

Business Features: Intel vPro with Active Management Technology on select configurations

2. Memory (RAM)

• Type: DDR4 SDRAM
• Speed: 2666 MHz (standard), some configurations support 2933 MHz
• Slots: 4 DIMM slots (standard on most models)
• Maximum Capacity: 64GB (4x16GB)
• Standard Configurations: 8GB, 16GB, 32GB
• Dual Channel: Supported for optimal performance
• Error Correction: Non-ECC memory on standard models (ECC available on select configurations)

3. Storage

• Primary Storage: M.2 2280 PCIe NVMe Gen3 SSD
• Secondary Storage: 2.5-inch SATA SSD/HDD bay
• Additional Storage: Optional optical drive bay (convertible to additional storage)
• Interface Speed: PCIe 3.0 x4 (up to 3,500 MB/s) for NVMe
• SATA Support: SATA III (6 Gbps) for 2.5-inch drives

Common Configurations:

• 256GB/512GB PCIe NVMe SSD
• 1TB 7200RPM SATA HDD
• 256GB NVMe SSD + 1TB SATA HDD (dual storage configurations)
• 512GB SATA SSD (cost-effective alternative to NVMe)

Intel Optane Memory H10: Supported on select configurations (combines Optane memory with QLC NAND)

4. Graphics

• Integrated: Intel UHD Graphics 630 (on 9th Gen CPUs)
• Dedicated Options: Supports half-height, low-profile dedicated GPUs including:
  • AMD Radeon RX 550 (2GB/4GB GDDR5)
  • NVIDIA Quadro P400 (2GB GDDR5)
  • NVIDIA GeForce GT 1030 (2GB GDDR5)
• Display Support: Up to 3 displays (with appropriate GPU)
• Video Outputs: DisplayPort 1.2, HDMI 1.4, VGA (on select configurations)

5. Connectivity & Ports

Front Ports:

• 2 x USB 3.1 Gen 1 Type-A (5 Gbps)
• 1 x USB 3.1 Gen 1 Type-C (5 Gbps) - becoming more standard than optional
• Headphone/Microphone combo jack
• Multi-format media card reader (optional)

Rear Ports:

• 4 x USB 3.1 Gen 1 Type-A
• 2 x USB 2.0 Type-A
• 1 x DisplayPort 1.2
• 1 x HDMI 1.4
• 1 x VGA port (still available on many configurations for legacy support)
• 1 x RJ-45 Gigabit Ethernet (Intel I219-LM)
• Audio line-out, line-in, and microphone jacks
• Serial port (optional on select models for industrial applications)

Wireless: Intel Dual Band Wireless-AC 9560 (802.11ac 2x2) + Bluetooth 5.0 (standard on many configurations)

6. Expansion & Form Factor

• Chassis Size: ~338 x 379 x 100 mm (13.3 x 14.9 x 3.9 inches)
• Expansion Slots:
  • 1 x PCIe 3.0 x16 slot (half-height/low-profile)
  • 1 x PCIe 3.0 x1 slot
  • 1 x PCI slot (legacy support on some configurations)
• Drive Bays:
  • 1 x M.2 2280 slot (PCIe NVMe or SATA)
  • 1 x 2.5-inch SATA bay
  • 1 x 5.25-inch optical drive bay (optional, convertible to additional storage)
• Power Supply: 180W-240W 80 PLUS Gold efficient
• Tool-less Design: Improved tool-free access to internal components

7. Security & Manageability

• Security Chip: TPM 2.0 (discrete)
• HP Sure Start Gen5: Enhanced self-healing BIOS with runtime intrusion detection
• HP BIOSphere: Secure BIOS architecture with additional protection layers
• Authentication: Optional Smart Card Reader, optional Fingerprint Reader
• Physical Security: Kensington lock slot, chassis intrusion detection, lockable rear panel
• Management: HP Manageability Integration Kit, Intel AMT 12.0+ (on vPro models)
• Encryption: HP Drive Encryption, Microsoft BitLocker support, optional Self-Encrypting Drives
• Secure Boot: UEFI BIOS with Secure Boot and HP Sure Start integration

8. Power & Environmental

• Power Supply: 80 PLUS Gold efficiency (87%+ efficiency at typical load)
• Power Consumption: Typical 35W, Maximum 130W (without discrete GPU)
• Certifications: ENERGY STAR 8.0, EPEAT Silver, TCO Certified Edge 8.0
• Operating Temperature: 5°C to 35°C (41°F to 95°F)
• Acoustics: < 28 dB under typical office load
• Sustainability: Increased use of recycled materials compared to previous generations

9. Operating System & Support

• Original OS: Windows 10 Professional 64-bit
• Windows 11 Compatibility: Officially supported via upgrade (TPM 2.0 + 9th Gen CPU)
• Alternative OS: Windows 10 Home, Windows 11 Pro, Linux (with driver support)
• Recovery: HP Cloud Recovery, HP Image Assistant, Windows Recovery Environment
• Warranty: 3-year limited warranty standard with optional upgrades
• Support: HP Proactive Insights predictive analytics on select service plans

Key Features & Target Audience

Unique Selling Points:

• Enhanced Security: HP Sure Start Gen5 provides improved BIOS protection over Gen4
• 9th Gen Performance: Higher clock speeds and optional 8-core processors
• Better Connectivity: USB-C becoming more standard across configurations
• Improved Manageability: Enhanced HP Manageability Integration Kit features
• Environmental Progress: Better energy efficiency and sustainable materials

Ideal For:

• Corporate office workstations and shared desktops
• Educational institutions and computer labs
• Healthcare clinics and medical office environments
• Small to medium business deployments
• Government and municipal offices
• Call centers and customer service operations

Limitations:

• Same Form Factor: Minimal physical changes from G4 model
• Limited GPU Support: Half-height cards only with power constraints
• No Thunderbolt: USB-C limited to 5 Gbps speeds (no Thunderbolt 3)
• PCIe 3.0 Only: Lacks PCIe 4.0 for next-generation storage
• Incremental Update: Modest improvements over G4 rather than revolutionary changes

Modern Use Assessment (2024)

• Still Highly Capable: 9th Gen processors remain excellent for office productivity
• Windows 11 Ready: Fully compatible with official upgrade path
• SSD Essential: Requires NVMe or SATA SSD for acceptable modern performance
• Memory Adequacy: 16GB RAM recommended for contemporary workloads
• Refurbishment Value: Excellent candidate for refurbishment with SSD/RAM upgrades

Critical Upgrade Recommendations:

• SSD Upgrade: NVMe SSD installation for optimal performance
• RAM Increase: Upgrade to 16GB or 32GB for modern multitasking
• OS Refresh: Clean Windows 10 or 11 installation recommended
• GPU Consideration: Basic low-profile GPU if additional display outputs or acceleration needed

Comparison with Contemporary Models:

• vs. ProDesk 600 G4: Incremental improvements in CPU performance and security
• vs. EliteDesk 800 G5: Fewer premium features but similar core performance
• vs. Dell OptiPlex 7070: Comparable specifications, different management ecosystems
• vs. Lenovo ThinkCentre M720: Similar market positioning with brand-specific features

Final Verdict:

The HP ProDesk 600 G5 SFF is a solid, reliable business desktop that represents a refined iteration of the proven ProDesk formula. While offering only incremental improvements over the G4 model, the G5 delivers meaningful enhancements in security with HP Sure Start Gen5 and slightly better performance from 9th Generation Intel processors.
