Executive Summary

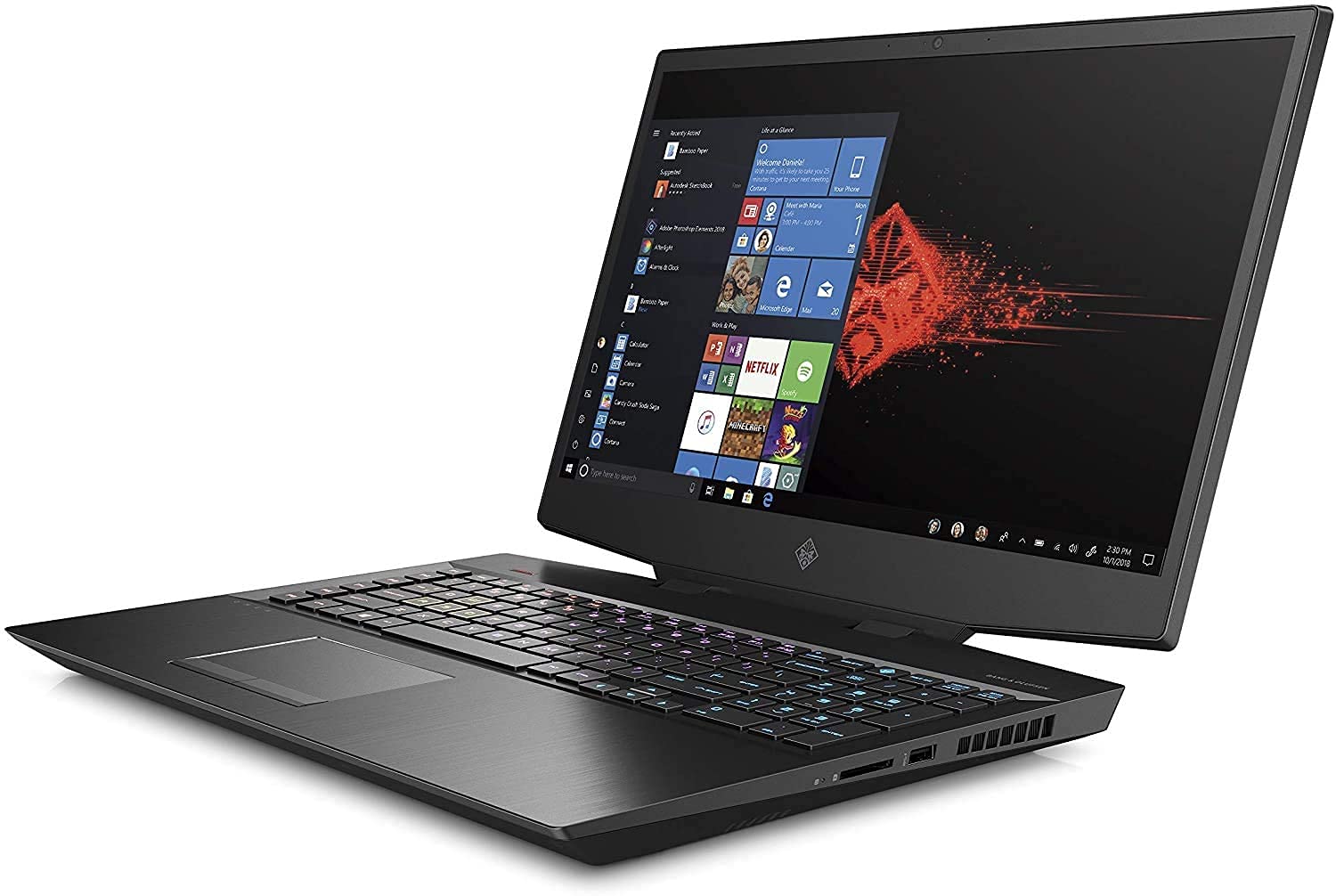

The HP OMEN 17 is a true desktop replacement gaming laptop, offering maximum performance in a large 17.3-inch form factor. Designed for gamers and creators who refuse to compromise on power, it features top-tier components including up to Intel Core i9-13900HX or AMD Ryzen 9 7945HX processors and NVIDIA GeForce RTX 4090 laptop GPUs. With its expansive display options, superior cooling system with vapor chamber technology, and desktop-level upgradeability, the OMEN 17 targets enthusiasts who demand uncompromising performance for gaming, content creation, and professional workloads, all while maintaining some degree of portability.

Detailed Specifications

1. Processor (CPU)

Options: Intel 13th Gen HX-series or AMD Ryzen 7000 HX-series

Intel Configuration:

• Top Model: Intel Core i9-13900HX
• Cores: 24 cores (8P+16E)
• Threads: 32 threads
• Clock Speed: Up to 5.4 GHz turbo
• Cache: 36MB Intel Smart Cache
• TDP: 55W base, up to 157W maximum

AMD Configuration:

• Top Model: AMD Ryzen 9 7945HX
• Cores: 16 Zen 4 cores
• Threads: 32 threads
• Clock Speed: Up to 5.4 GHz boost
• Cache: 64MB L3 cache
• TDP: 55W+, up to 75W+

2. Graphics (GPU)

Options: NVIDIA GeForce RTX 40-series Laptop GPUs

• Top Model: NVIDIA GeForce RTX 4090 Laptop GPU
• Architecture: Ada Lovelace
• CUDA Cores: Up to 9728 (RTX 4090)
• VRAM: Up to 16GB GDDR6 (RTX 4090)
• TGP: Up to 175W (with Dynamic Boost)
• Technologies: DLSS 3, 4th Gen Tensor Cores, 3rd Gen RT Cores

Available GPU Options:

• NVIDIA GeForce RTX 4050 (6GB GDDR6)
• NVIDIA GeForce RTX 4060 (8GB GDDR6)
• NVIDIA GeForce RTX 4070 (8GB GDDR6)
• NVIDIA GeForce RTX 4080 (12GB GDDR6)
• NVIDIA GeForce RTX 4090 (16GB GDDR6)

3. Display

• Size: 17.3-inch diagonal
• Resolution Options:
  • FHD (1920 x 1080) 144Hz IPS
  • QHD (2560 x 1440) 165Hz/240Hz IPS
  • 4K UHD (3840 x 2160) 144Hz IPS
• Panel Technology: IPS, Micro-edge, Anti-glare
• Color Coverage:
  • Standard: 100% sRGB
  • Premium: 100% DCI-P3 (on 4K and select QHD models)
• Brightness: 300-400 nits typical
• Response Time: 3ms (gray-to-gray)
• Features: NVIDIA G-Sync available on select configurations, Eyesafe certified

4. Memory & Storage

Memory (RAM):

• Type: DDR5 SDRAM
• Speed: 4800MHz or 5600MHz (depending on CPU)
• Configuration: 4 x SO-DIMM slots (exceptional for a laptop)
• Maximum Capacity: 64GB (4x16GB) officially supported
• Standard Configurations: 16GB, 32GB, or 64GB

Storage:

• Slots: 2 x M.2 PCIe Gen4 NVMe slots (2280)
• Maximum Capacity: Up to 4TB (2TB + 2TB)
• Interface: PCIe 4.0 x4 (up to 7,000 MB/s read)
• RAID Support: RAID 0 configuration available

5. Cooling System

• Technology: OMEN Tempest Cooling Pro
• Vapor Chamber: Full-system vapor chamber on high-end configurations
• Heat Pipes: 5 x custom heat pipes (on non-vapor chamber models)
• Fans: Dual 12V fans with 3-sided venting
• Airflow: IR thermometer sensors for dynamic fan control
• Thermal Paste: Liquid metal thermal compound on CPU (select configurations)

Cooling Modes (via OMEN Gaming Hub):

• Quiet Mode: Reduced noise, lower performance
• Balanced Mode: Optimal everyday performance
• Performance Mode: Maximum fan speed for gaming
• Manual Mode: User-adjustable fan curves and power limits

6. Design & Build

• Dimensions: ~398 x 279 x 26 mm (15.67 x 10.98 x 1.02 inches)
• Weight: Starting at 2.98 kg (6.57 lbs)
• Materials: Aluminum chassis, polycarbonate base, metal hinges
• Color: Shadow Black with OMEN diamond logo
• Hinge: Dual-zone hinge, smooth opening up to 135 degrees
• Webcam: HP Wide Vision 1080p FHD with temporal noise reduction
• Audio: Dual speakers by Bang & Olufsen, DTS:X Ultra, HP Audio Boost

7. Keyboard & Input

• Keyboard Options:
  • 4-zone RGB backlit membrane keyboard
  • Per-key RGB backlit membrane keyboard
  • Cherry MX ultra-low-profile mechanical keyboard (optional)
• Key Travel: 1.5mm (membrane), 1.8mm (Cherry MX mechanical)
• Anti-Ghosting: N-key rollover
• Touchpad: Precision glass touchpad, 150 x 90 mm
• Dedicated Keys: OMEN Gaming Hub key, microphone mute, volume roller

8. Connectivity & Ports

Left Side:

• 2 x USB 3.2 Gen 2 Type-A (10 Gbps)
• 1 x 3.5mm headphone/microphone combo jack
• 1 x SD card reader (UHS-I)

Right Side:

• 1 x USB 3.2 Gen 2 Type-A (10 Gbps)
• 1 x RJ-45 Ethernet (2.5Gbps)

Rear Ports:

• 1 x Thunderbolt 4 (USB4 40 Gbps, DisplayPort 1.4, 100W PD)
• 1 x USB 3.2 Gen 2 Type-C (10 Gbps, DisplayPort 1.4)
• 1 x HDMI 2.1 (up to 4K 120Hz or 8K 60Hz)
• 1 x Mini DisplayPort 1.4
• AC power input

Wireless:

• Wi-Fi: Intel Wi-Fi 6E AX211 (802.11ax 2x2) or MediaTek Wi-Fi 6E
• Bluetooth: 5.3

9. Battery & Power

• Battery Capacity: 83 Wh or 99 Wh (depending on configuration)
• Power Adapter: 280W or 330W slim tip adapter
• Battery Life:
  • Video playback: Up to 7 hours (83 Wh) / 9 hours (99 Wh)
  • Gaming: 1.5-2.5 hours
• Fast Charging: HP Fast Charge, 50% in 30 minutes
• USB-C Charging: Supported up to 100W

10. Software & Features

• Operating System: Windows 11 Home or Pro
• OMEN Gaming Hub: Performance tuning, lighting control, network optimizer
• OMEN Dynamic Power: Intelligent power distribution between CPU and GPU
• NVIDIA Software: GeForce Experience, NVIDIA Studio Driver support
• Audio Control: Bang & Olufsen Audio Control, DTS:X Ultra
• Security: Windows Hello via webcam, fingerprint reader optional

Performance Benchmarks

Gaming Performance (QHD, High Settings):

• Cyberpunk 2077 (RT Ultra, DLSS Quality): 70-90 FPS (RTX 4090)
• Hogwarts Legacy (Ultra): 90-110 FPS (RTX 4090)
• Call of Duty: Modern Warfare II: 120-140 FPS (RTX 4090)
• Elden Ring (Max Settings): 80-100 FPS (RTX 4090)
• Competitive Esports (Low Settings): 300+ FPS (RTX 4090)

Content Creation Performance:

• Blender BMW Render: Under 2 minutes (RTX 4090, OptiX)
• DaVinci Resolve 4K Export: 3-4 minutes for 10-minute timeline
• Adobe Premiere Pro 4K Render: Real-time playback with proxies
• Stable Diffusion: ~15 seconds per image (512x512)

Key Features & Target Audience

Unique Selling Points:

• Maximum Performance: Top-tier CPU and GPU configurations available
• Exceptional Cooling: Vapor chamber and liquid metal options
• Superior Upgradeability: 4 RAM slots and dual M.2 storage
• Premium Display Options: Up to 4K 144Hz with 100% DCI-P3
• Mechanical Keyboard Option: Cherry MX keys for desktop-like typing

Ideal For:

• Professional gamers and esports competitors
• Content creators and video professionals
• Game developers and 3D artists
• Streamers requiring maximum performance
• Users who want desktop power with occasional portability

Limitations:

• Portability: Heavy and large, not for frequent travel
• Battery Life: Very limited during gaming
• Heat Generation: Can get very warm under full load
• Price: Extremely expensive for high-end configurations
• Power Consumption: Requires large power bricks

Thermal Performance:

• CPU Temperatures (Max Load): 85-95°C (with vapor chamber: 80-90°C)
• GPU Temperatures (Gaming): 75-85°C
• Surface Temperatures: Keyboard: 40-45°C, Underside: 45-55°C
• Noise Levels: 48-58 dB under maximum performance mode

Upgradeability:

• RAM: 4 accessible SO-DIMM slots (bottom panel removal)
• Storage: 2 x M.2 slots easily accessible
• Wi-Fi Card: M.2 slot replaceable
• Battery: User-replaceable with proper tools
• Thermal Paste: Repaste possible but may void warranty

Display Comparison:

• QHD 240Hz: Best for competitive gaming, high refresh rate
• 4K 144Hz: Best for content creation, HDR content, premium gaming
• FHD 144Hz: Budget option, highest frame rates in esports

Final Verdict:

The HP OMEN 17 stands as a powerhouse desktop replacement that leaves little room for compromise. With configurations featuring up to Intel Core i9-13900HX or AMD Ryzen 9 7945HX processors and NVIDIA GeForce RTX 4090 laptop GPUs, it delivers performance that rivals many desktop systems. The inclusion of vapor chamber cooling (on high-end models), four RAM slots for up to 64GB, and dual PCIe Gen4 storage slots provide exceptional upgradeability rarely seen in laptops. While its size and weight make it less than ideal for frequent travel, and battery life during gaming is predictably short, these are acceptable trade-offs for its target audience. The OMEN 17 excels as a stationary gaming powerhouse that can be moved when necessary, offering premium features like optional Cherry MX mechanical keyboards and high-end display options up to 4K 144Hz. For users who demand maximum performance without building a desktop PC, the OMEN 17 represents one of the most capable gaming laptops available, though its premium pricing reflects its flagship status.
