Executive Summary

The Lenovo ThinkPad X1 Yoga represents the absolute pinnacle of business convertible design, combining flagship performance with executive-grade materials and innovative 2-in-1 functionality.

Detailed Specifications

1. Flagship Performance Configuration

• Processor: Intel Core i7-1165G7 (Tiger Lake, 10nm SuperFin)
  • 4 cores, 8 threads with Intel Hyper-Threading
  • Base frequency: 2.8 GHz, Turbo Boost up to 4.7 GHz
  • 12MB Intel Smart Cache
  • 12-28W configurable TDP (optimized for performance/efficiency balance)
• Memory Configuration:
  • 16GB LPDDR4x-4267 MHz (low-power DDR4)
  • Soldered to motherboard (not user-upgradable)
  • Dual-channel configuration for maximum performance
  • High-speed memory optimized for Iris Xe Graphics
• Storage System:
  • 512GB NVMe PCIe Gen4 SSD (M.2 2280)
  • Read speeds: ~5,000-7,000 MB/s (Gen4 advantage)
  • Write speeds: ~3,000-5,000 MB/s
  • User-upgradable to larger capacity Gen4 drives (up to 2TB)
• Graphics: Intel Iris Xe Graphics (96 execution units)
  • 96 execution units (significantly enhanced over previous generations)
  • Clock speed: 400-1300 MHz (dynamic based on workload)
  • Supports DirectX 12.1, OpenGL 4.6
  • Hardware acceleration for AV1, HEVC, VP9 codecs

2. Premium Display: Ultra HD OLED Touchscreen

• Panel Specifications:
  • 14" Ultra HD (3840x2160) OLED touchscreen
  • 400 nits brightness (600 nits HDR peak)
  • HDR500 True Black certified
  • Dolby Vision support for enhanced HDR content
  • 100% DCI-P3 color gamut (professional color accuracy)
  • 1,000,000:1 contrast ratio (perfect blacks)
• Touch & Pen Features:
  • 10-point multi-touch capacitive touchscreen
  • ThinkPad Precision Pen (included, garaged in chassis)
  • 4,096 levels of pressure sensitivity
  • Palm rejection technology with auto keyboard disable
  • Corning Gorilla Glass 3 protection
• Display Technology Advantages:
  • OLED provides perfect blacks and infinite contrast
  • Wide color gamut ideal for creative professionals
  • HDR support for premium content consumption
  • Low blue light emission with TÜV certification

3. Innovative Convertible Design

• 360-Degree Yoga Hinge:
  • Precision-engineered watchband hinge (6th Gen) or new hinge design (7th Gen)
  • Smooth transition between all usage modes
  • Tested for 30,000+ open/close cycles
  • Stable in all positions including tablet mode

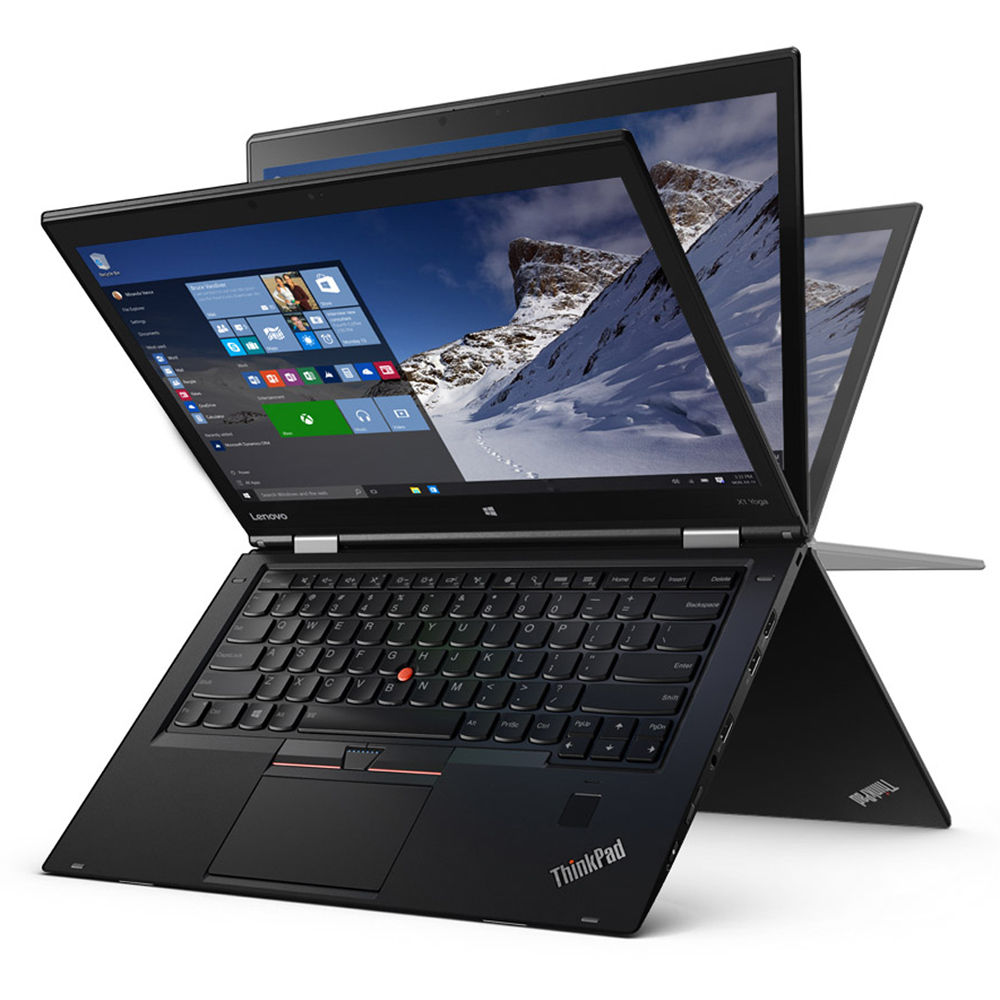

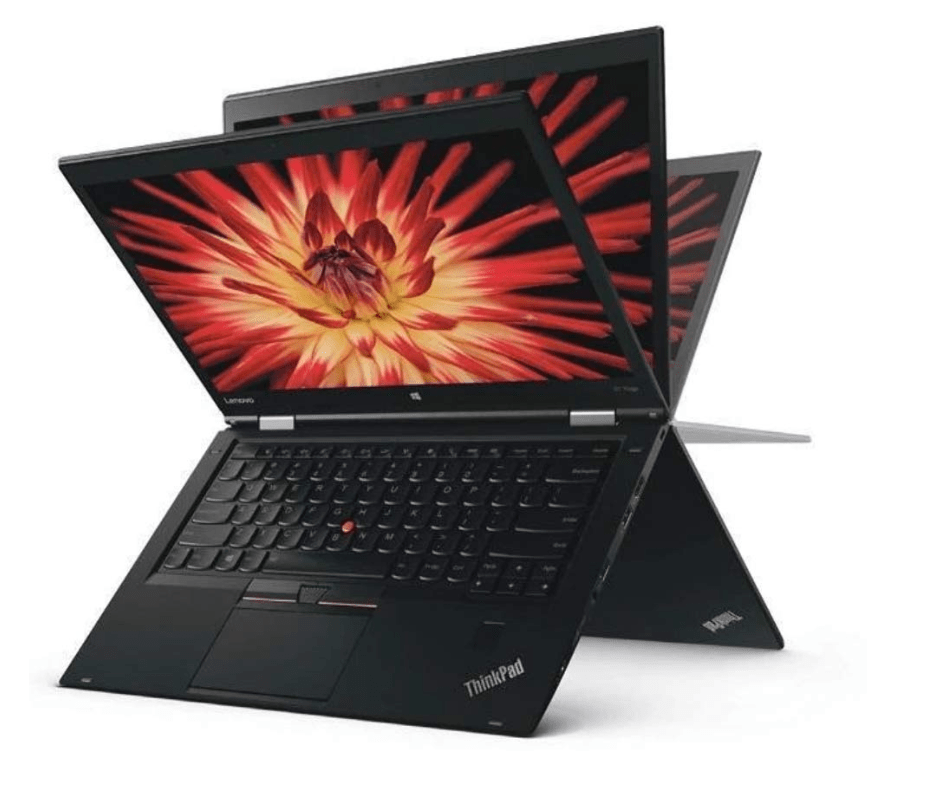

• Usage Modes:
  • Laptop Mode: Traditional clamshell for productivity
  • Tablet Mode: Screen folded flat for touch/pen use
  • Tent Mode: Inverted V for presentations and media
  • Stand Mode: Display facing outwards for collaboration
• Pen Garage System:
  • Integrated silo for ThinkPad Precision Pen 2
  • Pen charges automatically while stored
  • Prevents loss during transport
  • Magnetically attaches to sides when not garaged

4. Premium Materials & Construction

• Chassis Construction:
  • Top cover: Recycled aluminum with textured finish
  • Bottom cover: Magnesium alloy
  • Display cover: Aluminum with anti-reflective coating
  • Palm rest: Carbon fiber reinforced polymer
• Durability Features:
  • Military-grade testing (MIL-STD-810H certified)
  • Spill-resistant keyboard with drainage system
  • Reinforced corners and impact-resistant materials
  • Corrosion-resistant coatings on all metal parts
• Dimensions & Weight:
  • Height: 0.59" (15.2 mm) - remarkably thin
  • Width: 12.7" (323.5 mm)
  • Depth: 8.6" (218.5 mm)
  • Weight: 2.99 lbs (1.36 kg) - extremely light for 14" 4K convertible

5. ThinkPad Input Excellence

• Keyboard:
  • Legendary ThinkPad keyboard with 1.5mm key travel
  • Spill-resistant design with drainage channels
  • White LED backlight (two-level illumination)
  • Adaptive keyboard that retracts in tablet mode
  • Excellent tactile feedback despite slim profile
• TrackPoint & Trackpad:
  • Classic red TrackPoint pointing stick
  • Three dedicated physical buttons for TrackPoint
  • Haptic ForcePad with customizable feedback
  • Microsoft Precision Touchpad certified
• ThinkPad Precision Pen 2:
  • Garaged in chassis (prevents loss)
  • 4,096 pressure levels for professional drawing
  • Tilt recognition for natural shading effects
  • Two customizable buttons and eraser function

6. Connectivity & Audio

• Port Selection:
  • 2x Thunderbolt 4 (USB-C, 40Gbps, Power Delivery, DisplayPort 2.0)
  • 2x USB-A 3.2 Gen 1 (5Gbps)
  • HDMI 2.0 (4K at 60Hz output)
  • Headphone/microphone combo jack (Dolby Atmos support)
  • Optional: Nano-SIM slot for WWAN
• Wireless Connectivity:
  • Wi-Fi 6E (802.11ax) 2x2 with 6GHz band support
  • Bluetooth 5.2 with LE Audio
  • Optional: 4G LTE or 5G Sub-6 WWAN
  • Optional: Intel vPro with AMT for enterprise management
• Audio System:
  • Dolby Atmos Speaker System with upward-firing speakers
  • Quad-array far-field microphones
  • Noise cancellation with AI-based voice enhancement
  • Dolby Voice for crystal-clear conference calls

7. Comprehensive Security Suite

• Hardware Security:
  • Discrete TPM 2.0 chip with Intel Platform Trust Technology
  • Fingerprint reader with Match-on-Chip technology
  • IR camera with Windows Hello facial recognition
  • ThinkShutter camera privacy cover (physical)
  • Kensington lock slot
• Software Security:
  • ThinkShield comprehensive security suite
  • Lenovo Commercial Vantage for system management
  • Compatible with Windows 11 Secured-core PC requirements
  • Intel Hardware Shield for enhanced firmware protection
• Webcam & Audio Privacy:
  • 1080p HD webcam with ThinkShutter privacy cover
  • IR camera for Windows Hello (supports attention awareness)
  • Microphone mute key with LED indicator
  • Camera activity LED (hardware-based, cannot be disabled)

8. Battery & Power Management

• Battery System:
  • Integrated 57Wh lithium-polymer battery
  • Battery life: 8-10 hours typical use (4K display reduces runtime)
  • Rapid Charge: 80% in 1 hour
  • Battery conservation mode (limits charge to 80% for longevity)
• Power Management:
  • Intelligent Cooling 3.0 with dual fans
  • Lenovo Vantage performance/power profiles
  • Power adapter: 65W USB-C (works with either Thunderbolt port)
  • Can charge via any Thunderbolt 4 port

Performance Analysis

CPU & Graphics Performance

• CPU Performance (Geekbench 5):
  • Single-core: 1,400-1,500 points
  • Multi-core: 5,000-5,500 points
  • 30-40% faster than 8th Gen processors
• Graphics Performance (Iris Xe):
  • 3DMark Time Spy: 1,600-1,800 points
  • 2-3x faster than previous Intel integrated graphics
  • Capable of light gaming and content creation
• Storage Performance (Gen4 SSD):
  • Read speeds: 5,000-7,000 MB/s
  • Write speeds: 3,000-5,000 MB/s
  • 2-3x faster than previous Gen3 SSDs

Professional Workload Capabilities

• Creative Work:
  • Photo editing: Excellent for Lightroom/Photoshop
  • Video editing: Capable of 4K editing with proxy workflows
  • Graphic design: Smooth performance with Adobe Creative Suite
• Business Productivity:
  • Office applications: Flawless performance
  • Virtual meetings: Excellent with 1080p webcam and quad mics
  • Multitasking: Excellent with 16GB RAM
• Development Work:
  • Software development: Good for most IDEs and tools
  • Virtualization: Can run 1-2 VMs comfortably
  • Data analysis: Good performance for moderate datasets

Comparison with Previous Generations

vs. X1 Yoga 4th/5th Gen (8th/10th Gen Intel)

• Performance: 30-40% faster CPU, 200-300% faster graphics
• Display: 4K OLED vs FHD/LCD, significantly better quality
• Connectivity: Thunderbolt 4 vs Thunderbolt 3, Wi-Fi 6E vs Wi-Fi 5
• Security: Enhanced ThinkShield with hardware improvements

vs. Non-OLED X1 Yoga Models

• Display Quality: OLED provides perfect blacks and better contrast
• Color Accuracy: 100% DCI-P3 vs 100% sRGB
• Battery Life: Non-OLED models typically have better battery life
• Price: OLED models command a significant premium

Pros & Cons

Advantages

• Stunning 4K OLED display with HDR500 and Dolby Vision
• Excellent performance with 11th Gen i7 and Iris Xe Graphics
• Premium build quality with recycled aluminum and carbon fiber
• Garaged pen system prevents loss and charges automatically
• Comprehensive connectivity with Thunderbolt 4 and Wi-Fi 6E
• Excellent audio system with Dolby Atmos and quad mics
• Future-proof configuration with 16GB RAM and Gen4 SSD
• Thin and light design for a 14" 4K convertible

Limitations

• Battery life reduced by 4K OLED display (6-8 hours realistic)
• Soldered RAM (fixed at 16GB, not upgradable)
• Premium price for OLED and high-end configuration
• Fan noise can be noticeable under heavy load
• OLED burn-in risk with static content (mitigated by software)
• Reflective screen in bright environments
• No discrete GPU option (integrated graphics only)

Target User Profiles

Ideal Users

• Creative Professionals: Photographers, designers, video editors
• Executives & Consultants: Premium presentation and note-taking
• Media Professionals: Content creators, journalists, reviewers
• Power Business Users: Need both performance and versatility
• Digital Artists: Benefit from 4K OLED and Precision Pen
• Technology Enthusiasts: Want the best display and latest features

Current Market Value (2024)

• Original Price (2021-2022): $2,000-$2,500 for this configuration
• 2024 Market Price (Ex-UK): £700-£900 / $800-$1,100
  • Base condition: £700-800 / $800-950
  • Good condition with accessories: £800-900 / $950-1,100
  • Excellent condition with box/warranty: £850-950 / $1,000-1,150
• Value Assessment:
  • Excellent value for premium OLED convertible
  • 4K OLED display maintains premium appeal
  • Performance still competitive with current mid-range laptops

Final Recommendation

Rating: 9.0/10 for Creative/Executive Use | 8.0/10 for General Business Use

Bottom line: If you value display quality above all else and need versatile 2-in-1 functionality, this X1 Yoga configuration is arguably the best choice in its price range. The combination of 4K OLED, premium build, and ThinkPad reliability creates a package that's difficult to match. Just be prepared for shorter battery life compared to FHD models and ensure your workflow benefits from the OLED display's advantages.
