Detailed Technical Specifications

Product Information

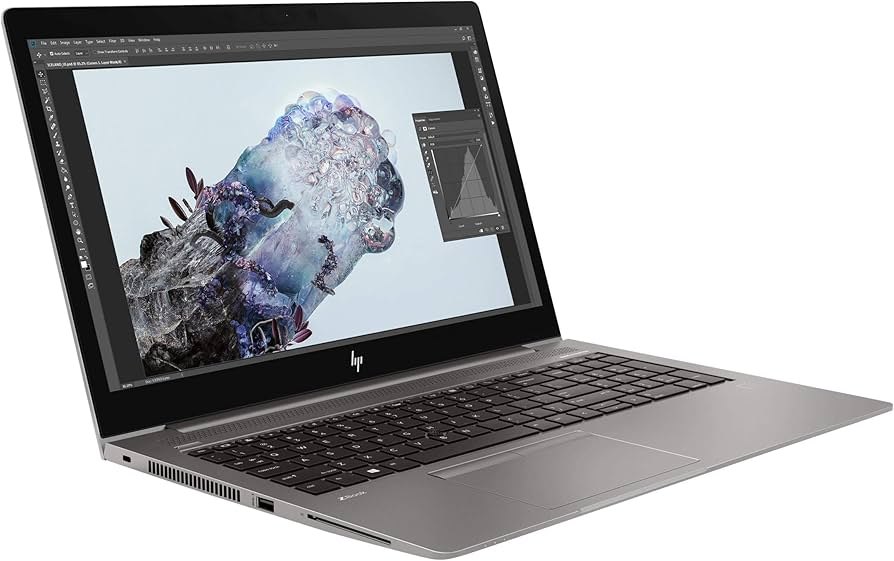

• Product Name: HP ZBook 15 G6 Mobile Workstation
• Model: ZBook 15 G6
• Generation: 6th generation (G6)
• Product Line: HP ZBook Professional Workstations
• Category: 15.6" Mobile Workstation
• Target Market: Professional users requiring ISV-certified, VR-ready performance
• Announced: April 2019

Processor Options

• Processor Family: Intel 9th Generation Coffee Lake Refresh
• Core i5 Options: Intel Core i5-9300H (4 cores, 2.4 GHz base, 4.1 GHz turbo, 8MB cache)
• Core i5 vPro: Intel Core i5-9400H (4 cores, 2.5 GHz base, 4.3 GHz turbo, 8MB cache)
• Core i7 Options: Intel Core i7-9750H (6 cores, 2.6 GHz base, 4.5 GHz turbo, 12MB cache)
• Core i7 vPro: Intel Core i7-9850H (6 cores, 2.6 GHz base, 4.6 GHz turbo, 12MB cache)
• Core i9: Intel Core i9-9880H (8 cores, 2.3 GHz base, 4.8 GHz turbo, 16MB cache)
• Xeon Option: Intel Xeon E-2286M (8 cores, 2.4 GHz base, 5.0 GHz turbo, 16MB cache, ECC support)
• TDP: 45W
• Intel vPro: Available on select Core i5, i7, and all Xeon processors

Memory (RAM)

• Memory Type: DDR4 SDRAM
• Memory Speed: 2666 MHz (Core) or 2667 MHz (Xeon with ECC)
• Memory Slots: 4 x 260-pin SO-DIMM slots
• Standard Memory: 8GB, 16GB, 32GB, or 64GB (varies by configuration)
• Maximum Memory: 128GB (4 x 32GB modules)
• ECC Memory: Supported with Intel Xeon processors
• Dual Channel: Yes

Graphics Options

• NVIDIA Quadro P1000: 4GB GDDR5, 640 CUDA cores, Pascal architecture
• NVIDIA Quadro T1000: 4GB GDDR5, 768 CUDA cores, Turing architecture
• NVIDIA Quadro T2000: 4GB GDDR5, 1024 CUDA cores, Turing architecture
• NVIDIA Quadro RTX 3000: 6GB GDDR6, 1920 CUDA cores, RT cores, Tensor cores
• NVIDIA Quadro RTX 4000: 8GB GDDR6, 2304 CUDA cores, RT cores, Tensor cores
• NVIDIA Quadro RTX 5000: 16GB GDDR6, 3072 CUDA cores, RT cores, Tensor cores
• Integrated Graphics: Intel UHD Graphics 630 (Core) or Intel UHD Graphics P630 (Xeon)
• NVIDIA Optimus: Automatic switching between integrated and dedicated graphics
• ISV Certification: All graphics options certified for professional applications
• VR Ready: Quadro RTX 3000/4000/5000 configurations

Display Options

• Screen Size: 15.6 inches diagonal
• FHD Display: 1920 x 1080 pixels (Full HD)
• UHD 4K Display: 3840 x 2160 pixels (Ultra HD, optional)
• Panel Technology: IPS (In-Plane Switching), Ultra-Wide Viewing Angle
• Anti-Glare: Matte finish on all displays
• Touch Option: Capacitive multi-touch (optional)
• DreamColor: Factory-calibrated 100% Adobe RGB, Delta E < 2 (optional)
• HP Sure View: Integrated privacy screen (optional, must be configured at purchase)
• Brightness: 250 nits (FHD), up to 600 nits (DreamColor)
• Color Gamut: 45% NTSC (FHD), 100% Adobe RGB (DreamColor)
• Aspect Ratio: 16:9
• Refresh Rate: 60 Hz

Storage Options

• Primary M.2 Slot: M.2 2280 PCIe NVMe SSD
• Secondary M.2 Slot: M.2 2280 PCIe NVMe or SATA SSD
• 2.5" SATA Bay: 7mm SATA HDD or SSD (not available with Quadro RTX 3000/4000/5000)
• NVMe Capacities: 256GB, 512GB, 1TB, 2TB
• SATA Capacities: 500GB, 1TB, 2TB HDD (5400 or 7200 rpm) or SSD
• HP Z Turbo Drive G2: NVMe SSDs with up to 3470 MB/s sequential read
• RAID Support: RAID 0, RAID 1 configurations
• Intel Optane Memory: Up to 16GB cache acceleration for HDDs
• Self-Encrypting Drive: Optional OPAL 2.0 compliant SEDs
• Maximum Storage: Up to 6TB (3 x 2TB NVMe SSDs)

Operating System

• Windows: Windows 10 Pro (64-bit)
• Workstation Edition: Windows 10 Pro for Workstations (optional)
• Preinstalled: OS preinstalled and activated

Wireless Connectivity

• Wi-Fi: Intel Dual Band Wi-Fi 6 AX200 (802.11ax)
• Wi-Fi Standards: 802.11a/b/g/n/ac/ax
• Wi-Fi Speed: Up to 2.4 Gbps (theoretical maximum)
• Frequency Bands: Dual-band 2.4 GHz and 5 GHz
• MIMO: 2x2 antenna configuration with MU-MIMO
• Bluetooth: Bluetooth 5.0
• Optional WWAN: Intel XMM 7360 LTE-Advanced (Category 16)
• Cellular Bands: Multi-band support for global connectivity
• GPS: Integrated GPS on WWAN models
• Optional NFC: Near Field Communication module

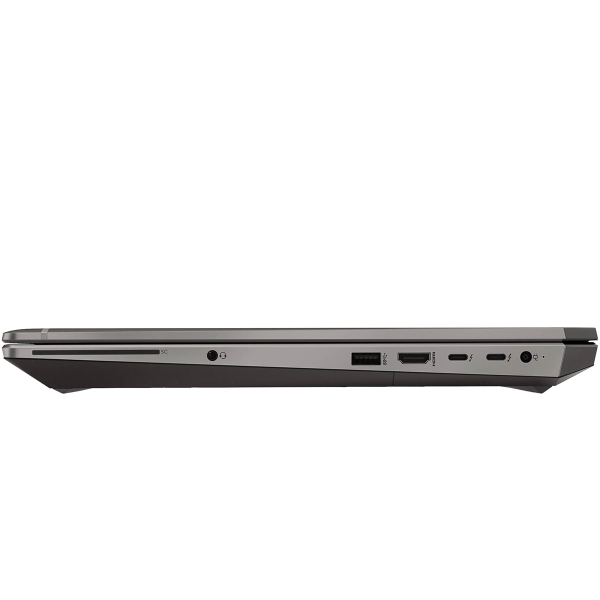

Ports & Connectivity

• Thunderbolt 3: 2 x USB-C with Thunderbolt 3 (40 Gbps, DisplayPort 1.4, USB 3.1 Gen 2, Power Delivery)
• USB 3.1: 3 x USB 3.1 Gen 1 Type-A (5 Gbps), one with charging capability
• HDMI: 1 x HDMI 1.4b port
• Ethernet: 1 x RJ-45 Gigabit Ethernet (10/100/1000)
• Audio: 1 x 3.5mm combo headphone/microphone jack
• Card Reader: SD/SDHC/SDXC card reader with UHS-II support
• Smart Card: Optional contactless smart card reader
• Docking: HP ZBook Dock and Thunderbolt Dock G2 compatible
• Security Lock: Kensington lock slot
• Multi-Display: Up to 4 independent displays with hybrid graphics

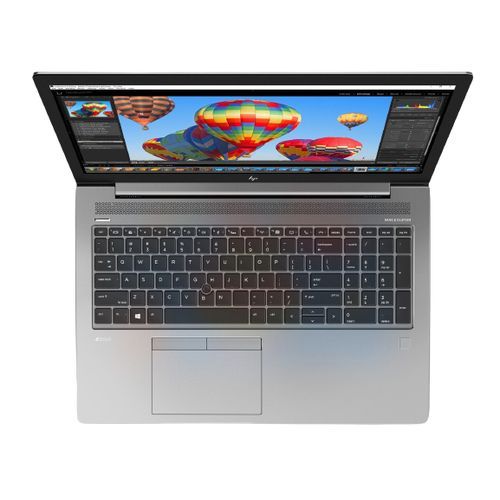

Input Devices

• Keyboard: Full-size backlit spill-resistant keyboard with numeric keypad
• Key Travel: 1.5mm
• Keyboard Backlighting: Yes, three-level adjustable brightness
• Spill Resistance: Keyboard drain holes and sealed design
• HP Collaboration Keyboard: Optional keyboard with dedicated call control keys
• Touchpad: Precision glass touchpad with gesture support
• Touchpad Size: Large multi-gesture touchpad
• Touchpad Buttons: Integrated buttons
• Optional DualPoint: TrackPoint-style pointing stick available

Audio & Video

• Webcam: HD (720p) webcam at 30 fps
• IR Camera: Optional infrared camera for Windows Hello
• HP Privacy Camera: Physical shutter cover for webcam
• Microphones: Dual array digital microphones
• HP World Facing Microphone: Third microphone for capturing voices across the table
• HP Noise Reduction: AI-powered ambient noise cancellation
• Speakers: HP tuned Bang & Olufsen dual stereo speakers
• Audio
