Detailed Technical Specifications

Product Information

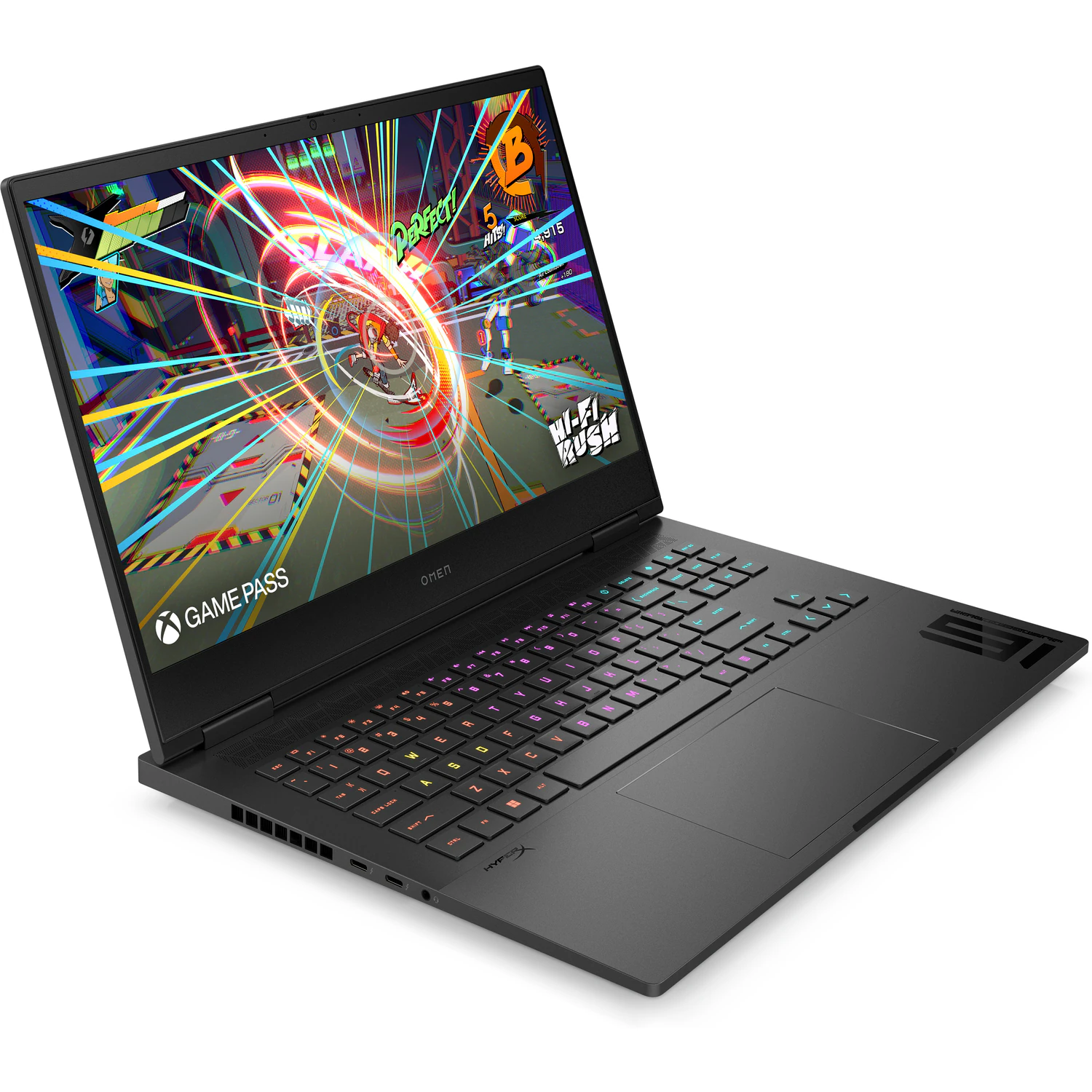

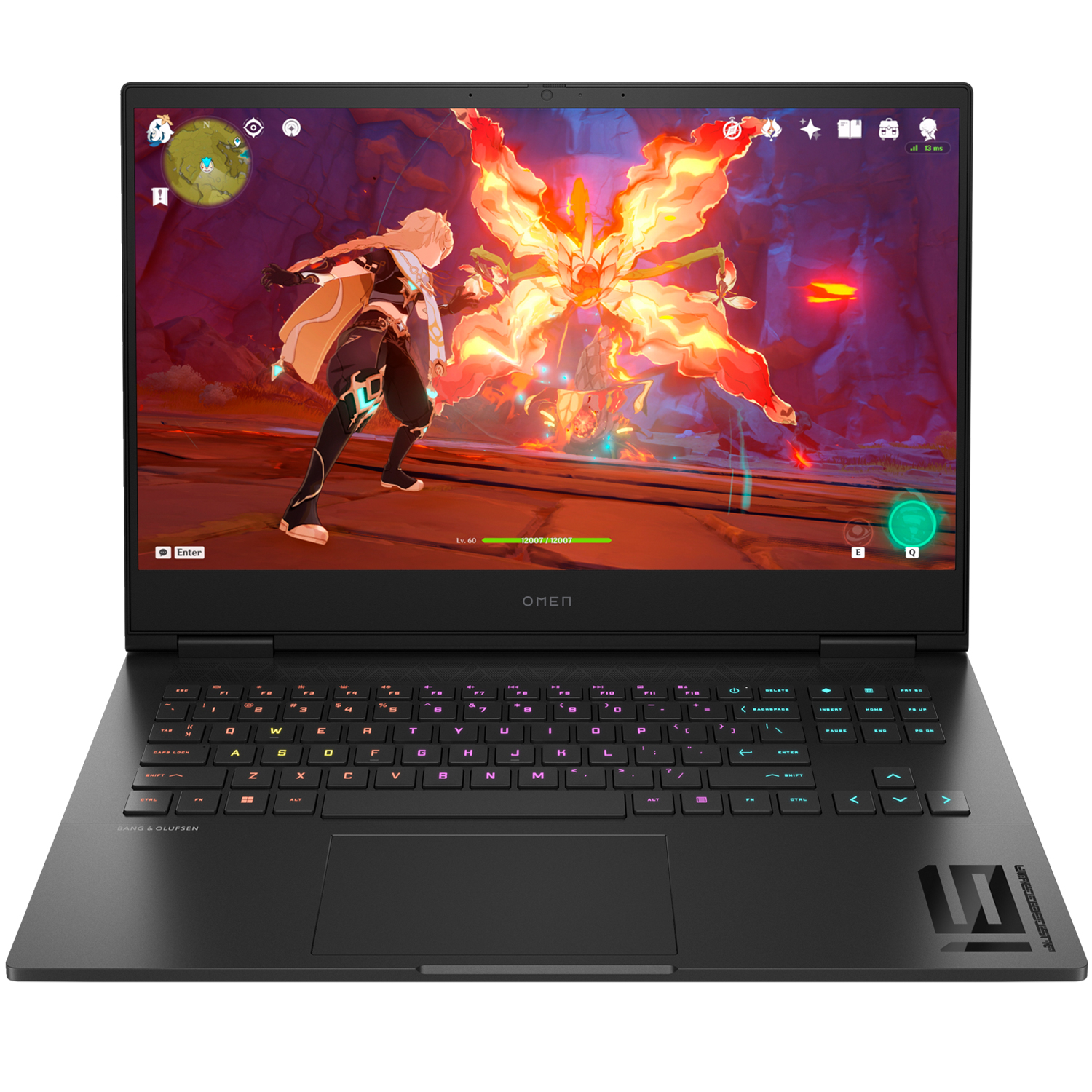

• Product Name: HP OMEN 16 Gaming Laptop
• Model Series: OMEN 16-wf0000 / 16-wd0000 series
• Brand: HP
• Series: OMEN Gaming Laptops
• Category: Gaming Laptop
• Release Year: 2023
• Form Factor: 16.1-inch Laptop
• Dimensions: 14.53 x 10.21 x 0.93 inches (369 x 259 x 23.5 mm)
• Weight: 5.4 lbs (2.45 kg)
• Color: Shadow Black with OMEN diamond logo

Processor (CPU)

• Model: Intel Core i9-13900HX (typical for high-end configurations)
• Generation: 13th Generation (Raptor Lake)
• Core Configuration: 8 Performance cores + 16 Efficiency cores = 24 total cores
• Threads: 32 threads (8P cores with Hyper-Threading = 16 threads + 16E cores = 32 total)
• Base Frequency: P-cores: 1.8-2.2 GHz, E-cores: 1.5 GHz
• Max Turbo Frequency: Up to 5.4 GHz (single core)
• Cache: 36MB Intel Smart Cache
• Socket: BGA (soldered)
• TDP: 55W Base, up to 157W Maximum Turbo Power
• Architecture: Intel 7 (10nm Enhanced SuperFin)
• Intel Technologies: Intel Turbo Boost Max 3.0, Thermal Velocity Boost, Thread Director, PCIe 5.0, DDR5, VT-x, VT-d, AES-NI
• Other Possible CPUs: i7-13700HX, i5-13500HX, i9-13900H (depending on configuration)

Graphics (GPU)

• Model: NVIDIA GeForce RTX 4060 Laptop GPU (8GB)
• GPU Architecture: NVIDIA Ada Lovelace
• Memory: 8GB GDDR6
• Memory Interface: 128-bit
• CUDA Cores: 3072
• Base Clock: 1830 MHz
• Boost Clock: 2370 MHz (varies by thermal design and power limit)
• Ray Tracing Cores: 3rd Generation
• Tensor Cores: 4th Generation (with DLSS 3 and Frame Generation)
• TGP (Total Graphics Power): 115W-140W (with Dynamic Boost)
• MUX Switch: Yes (Advanced Optimus, allows direct GPU connection to display)
• NVIDIA Technologies: DLSS 3 (with Frame Generation), Ray Tracing, NVIDIA Reflex, NVIDIA Broadcast, NVIDIA Studio
• VR Ready: Yes

Display

• Size: 16.1-inch diagonal
• Resolution: Full HD (1920 x 1080)
• Panel Type: IPS, Anti-Glare, Micro-edge
• Refresh Rate: 165Hz or 144Hz (varies by configuration)
• Response Time: 3ms (gray-to-gray)
• Brightness: 300 nits typical
• Color Gamut: 100% sRGB
• Color Accuracy: Factory color calibrated
• Adaptive Sync: NVIDIA G-SYNC compatible
• Other Display Options: QHD (2560x1440) 240Hz, FHD 144Hz 7ms, FHD 165Hz 3ms (depending on configuration)

Memory (RAM)

• Capacity: 16GB DDR5 (as configured)
• Type: DDR5-4800 or DDR5-5600 (non-ECC)
• Slots: 2x SO-DIMM slots (user upgradeable)
• Configuration: Typically 2x8GB in dual-channel
• Maximum Supported: Up to 64GB (2x32GB)
• Memory Technology: Dual-channel architecture
• Speed: 4800MHz or 5600MHz (depends on CPU and configuration)

Storage

• Primary Storage: 1TB PCIe 4.0 NVMe SSD
• Interface: PCIe Gen 4.0 x4 (NVMe)
• Form Factor: M.2 2280
• Storage Slots: 2x M.2 slots (one occupied)
• Storage Expansion: Can add a second NVMe SSD (up to 2TB recommended)
• RAID Support: RAID 0, RAID 1 (with two drives of same capacity)
• SSD Type: High-performance PCIe 4.0 SSD with heatsink

Operating System

• Pre-installed: Windows 11 Home 64-bit
• Recovery: HP Cloud Recovery, HP Recovery Manager
• Windows Features: DirectX 12 Ultimate, Auto HDR, DirectStorage 1.2
• Gaming Features: Game Mode, Windows Game Bar, Xbox Game Pass integration
• Upgrade Path: Eligible for Windows 11 Pro upgrade (purchase required)

Connectivity

• Ethernet: Realtek RTL8411B Gigabit Ethernet (RJ-45)
• Wireless: Intel Wi-Fi 6E AX211 (802.11ax, 2x2) + Bluetooth 5.3
• Wi-Fi Speed: Up to 2.4 Gbps (6GHz band support for Wi-Fi 6E)
• Bluetooth: Bluetooth 5.3 with LE Audio support
• LAN Features: Wake on LAN, PXE boot

Ports & Slots

• Left Side:
  • 1x Thunderbolt 4 with USB4 Type-C (40 Gbps, DisplayPort 1.4, Power Delivery)
  • 1x USB 3.2 Gen 2 Type-A (10 Gbps)
  • 1x HDMI 2.1 (up to 4K@120Hz or 8K@60Hz)
  • 1x Mini DisplayPort 1.4
  • 1x RJ-45 Ethernet
  • 1x 3.5mm headphone/microphone combo jack
• Right Side:
  • 2x USB 3.2 Gen 2 Type-A (10 Gbps)
  • 1x SD Card reader (UHS-I)
  • 1x AC power connector
• Video Output Support: Up to 4 external displays via Thunderbolt 4, HDMI, and Mini DisplayPort

Audio

• Audio System: Audio by Bang & Olufsen
• Speakers: Dual speakers with HP Audio Boost
• Speaker Technology: DTS:X Ultra
• Microphone: Dual array digital microphones
• Audio Features: HP Audio Boost, AI Noise Removal, Audio by B&O
• 3.5mm Jack: Headphone/microphone combo with headphone amplifier

Keyboard & Input

• Keyboard: Full-size, per-key RGB backlit keyboard
• Key Travel: 1.5mm
• Lighting: 4-zone or per-key RGB (configurable via OMEN Gaming Hub)
• Special Keys: Dedicated OMEN key (opens Gaming Hub), Media controls, Volume roller
• Touchpad: Precision glass touchpad, 12.5 x 8.0 cm, Microsoft Precision drivers
• Webcam: HP Wide Vision 1080p FHD camera with temporal noise reduction
• Camera Features: IR camera for Windows Hello facial recognition (on select models)

Cooling System

• Cooling Technology: OMEN Tempest Cooling Technology
• Fans: Dual 12V fans with 3-sided venting and 5-way airflow
• Heat Pipes: 5 heat pipes (CPU and GPU share cooling system)
• Venting: Rear and side venting for improved airflow
• Fan Control: OMEN Gaming Hub with Performance Control (Quiet, Default, Performance modes)
• Thermal Design: Optimized thermal solution with IR temperature sensors

Power & Battery

• Battery Type: 6-cell, 83Wh Li-ion polymer
• Battery Life: Up to 6 hours (video playback), 2-3 hours (gaming)
• Power Adapter: 280W Slim Tip power adapter
• Fast Charging: HP Fast Charge (50% in 30 minutes when powered off)
• Battery Care: Adaptive Battery Optimizer in OMEN Gaming Hub

Software & Gaming Features

• Pre-installed Software: OMEN Gaming Hub, HP Support Assistant, NVIDIA GeForce Experience
• Gaming Hub Features: Performance Control, Lighting Control, Network Booster, Game Optimizer
• NVIDIA Software: GeForce Experience with Game Ready drivers, NVIDIA Studio drivers (for creators)
• Streaming Features: NVIDIA Broadcast (noise removal, virtual background)
• Game Optimization: OMEN Gaming Hub can optimize game settings automatically

Build & Design

• Chassis Material: Aluminum top cover, plastic base
• Hinge: Single hinge design, 180-degree lay-flat
• Build Quality: MIL-STD-810H tested for durability
• Portability: Thin and light for a 16-inch gaming laptop
• Lighting: Keyboard backlighting (RGB) and OMEN logo (white or RGB)

Environmental Specifications

• Operating Temperature: 50°F to 95°F (10°C to 35°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Relative Humidity: 10% to 90% (non-condensing)
• Altitude: Up to 10,000 feet (3,048 meters)
• Acoustic Noise: 30 dBA typical (idle), 45 dBA under gaming load

Warranty & Support

• Standard Warranty: 1-year limited warranty (parts and labor)
• Support Hours: 24/7 online and phone support
• Onsite Service: Optional (varies by region)
• Extended Warranty: Available up to 3 years
• Accidental Damage Protection: Optional HP Care Pack

Certifications & Compliance

• ENERGY STAR certified
• EPEAT Silver (depending on configuration)
• RoHS compliant
• WEEE compliant
• FCC Class B certified
• CE Marking
• WHQL certified for Windows 11

What's in the Box

• HP OMEN 16 Gaming Laptop
• 280W Slim Tip power adapter
• Power cord
• Documentation Kit
• Warranty Card

Performance & Gaming Capabilities

• Target Use: Gaming, content creation, streaming, VR, everyday productivity
• Recommended For: 1080p high-refresh gaming, 1440p gaming with DLSS 3, video editing, 3D rendering
• Gaming Performance: Excellent for 1080p gaming (100+ FPS in most titles), very good for 1440p gaming with DLSS 3
• Ray Tracing: Good performance with 3rd Gen RT cores and DLSS 3 Frame Generation
• DLSS 3 Support: Yes (with Frame Generation for significantly higher FPS)
• VR Ready: Yes (compatible with Meta Quest 2/3 via link cable)
• Content Creation: Excellent for video editing, 3D modeling with 24-core CPU
• Thermal Performance: Good thermal management, but can get warm under heavy load

Upgrade Potential

• RAM Upgrade: Easy access panel, supports up to 64GB DDR5
• Storage Upgrade: Additional M.2 slot available for second SSD
• Battery: User-replaceable (requires opening chassis)
• Wi-Fi Card: M.2 slot, upgradeable to newer standards in future
• Limitations: CPU and GPU are soldered, not upgradeable

Important Notes & Recommendations

• Display Choice: FHD 165Hz is excellent for competitive gaming; consider QHD 240Hz for better visuals if available
• Memory Upgrade: 16GB is sufficient for gaming, but 32GB is recommended for content creation and future-proofing
• Storage: 1TB SSD is good for gaming library; add second SSD for media files and backups
• Cooling Pad: Recommended for extended gaming sessions to maintain performance
• Performance Modes: Use Performance mode when plugged in for best gaming experience
• MUX Switch: Enable in OMEN Gaming Hub for 5-10% better gaming performance when plugged in
• Compared to OMEN 17: More portable, slightly less cooling capacity, similar performance
• Compared to OMEN Transcend 16: More gaming-focused, better performance, less premium materials
• Gaming Performance: RTX 4060 with 140W TGP performs close to desktop RTX 4060
• Battery Life: Enable Hybrid Graphics mode in OMEN Gaming Hub for better battery life on the go
• Value Proposition: Excellent balance of performance, portability, and features for a gaming laptop
