Executive Summary

The Lenovo ThinkPad X390 Yoga represents the premium convertible variant of the acclaimed X390 ultraportable, combining business-grade performance with versatile 2-in-1 functionality. This high-end configuration featuring an Intel Core i7 processor, 16GB of RAM, and a spacious 512GB SSD delivers exceptional performance for demanding professional workloads while maintaining the flexibility of tablet, tent, and presentation modes. The 13.3-inch Full HD touchscreen with active pen support enables digital inking, annotation, and intuitive touch interaction, making it ideal for creative professionals, presenters, and executives who benefit from multiple form factors. Built with premium materials including aluminum and magnesium alloy, the X390 Yoga maintains ThinkPad's legendary durability and keyboard excellence while adding the innovative 360-degree hinge that defines the Yoga series. With comprehensive security features, Thunderbolt 3 connectivity, and the signature ThinkPad attention to detail, this convertible serves as a complete mobile workstation for professionals who refuse to compromise between laptop productivity and tablet versatility.

Detailed Specifications

1. Premium Performance Configuration

• Processor: Intel Core i7-8565U (Whiskey Lake, 14nm++)
  • 4 cores, 8 threads with Intel Hyper-Threading
  • Base frequency: 1.8 GHz, Turbo Boost up to 4.6 GHz
  • 8MB Intel Smart Cache
  • 15W TDP (optimized for performance/efficiency balance)
• Memory Configuration:
  • 16GB LPDDR3-2133MHz (low-power DDR3)
    • Soldered to motherboard (not user-upgradable)
    • Dual-channel configuration for optimal performance
    • Substantial 16GB capacity ideal for multitasking and virtual machines
  • Performance Advantage: i7 provides approximately 10-15% better performance than i5 in same generation
• Storage System:
  • 512GB NVMe PCIe SSD (M.2 2242 form factor)
    • Read speeds: ~1,500-2,500 MB/s
    • Write speeds: ~800-1,500 MB/s
    • Ample capacity for applications, data, and virtual machines
  • Storage Advantage: 512GB provides comfortable space for professional use without immediate need for upgrade
• Graphics: Intel UHD Graphics 620
  • 24 execution units, 300-1150 MHz
  • Supports 4K video playback at 60Hz
  • Hardware acceleration for modern codecs
  • Adequate for business applications and light creative work

2. Display & Touch Experience

• Panel Specifications:
  • 13.3" Full HD (1920x1080) IPS Touchscreen
  • 300 nits brightness (adequate for indoor use)
  • Anti-glare coating reduces reflections
  • 72% NTSC color gamut (100% sRGB equivalent)
  • IPS technology provides 178° viewing angles
  • Corning Gorilla Glass protection
• Touch & Pen Features:
  • 10-point multi-touch capacitive touchscreen
  • ThinkPad Pen Pro support (active pen technology)
  • 2,048 levels of pressure sensitivity
  • Palm rejection technology with auto keyboard disable
  • Pen included or sold separately depending on configuration
• Display Options Available:
  • Touchscreen FHD IPS with PrivacyGuard
  • WQHD (2560x1440) IPS touchscreen on some configurations
  • HDR display options on premium configurations

3. Innovative Convertible Design

• 360-Degree Yoga Hinge:
  • Precision-engineered hinge with smooth operation
  • Tested for 25,000+ open/close cycles
  • Stable in all usage modes without wobble
  • Auto-locks in tablet mode for security
• Usage Modes:

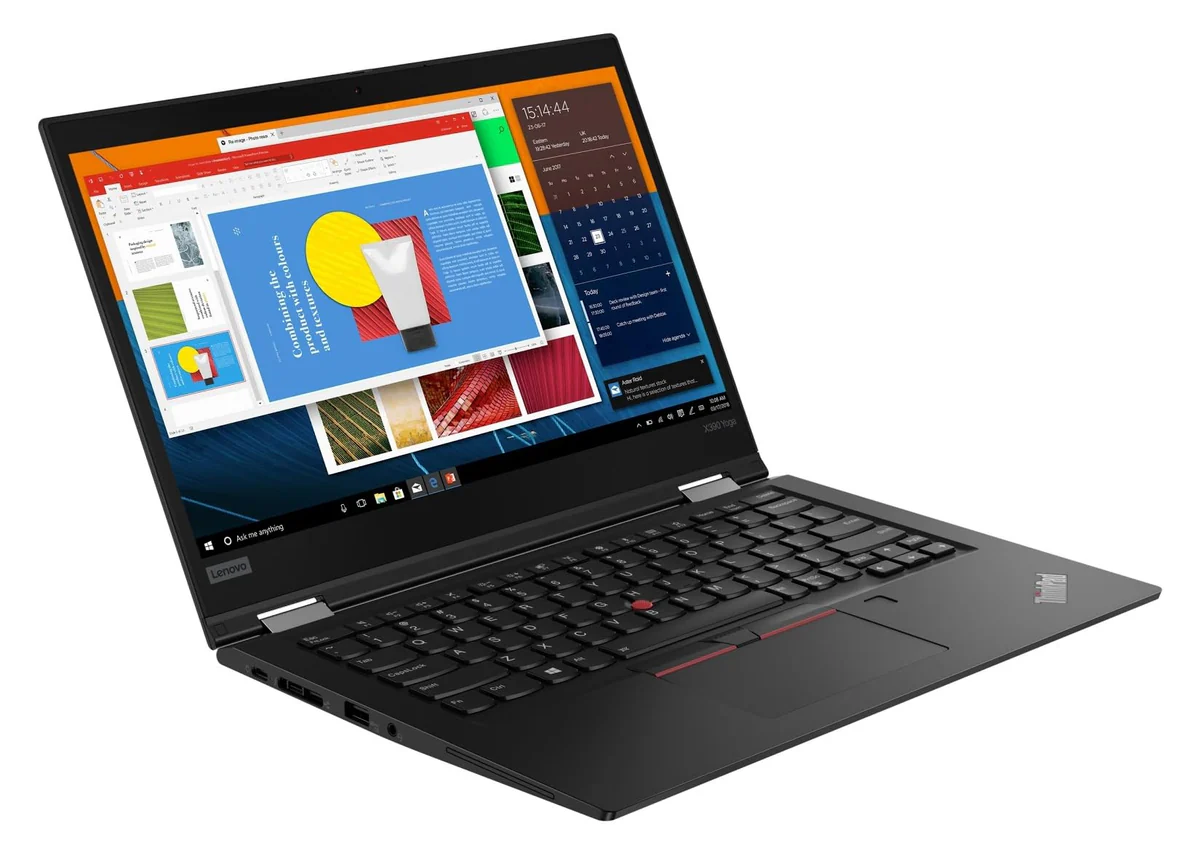

  • Laptop Mode: Traditional clamshell for productivity work

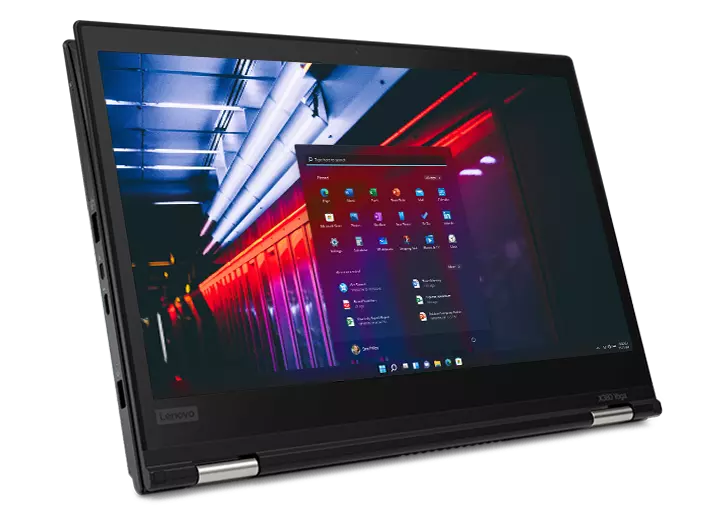

  • Tablet Mode: Screen folded flat for touch/pen interaction

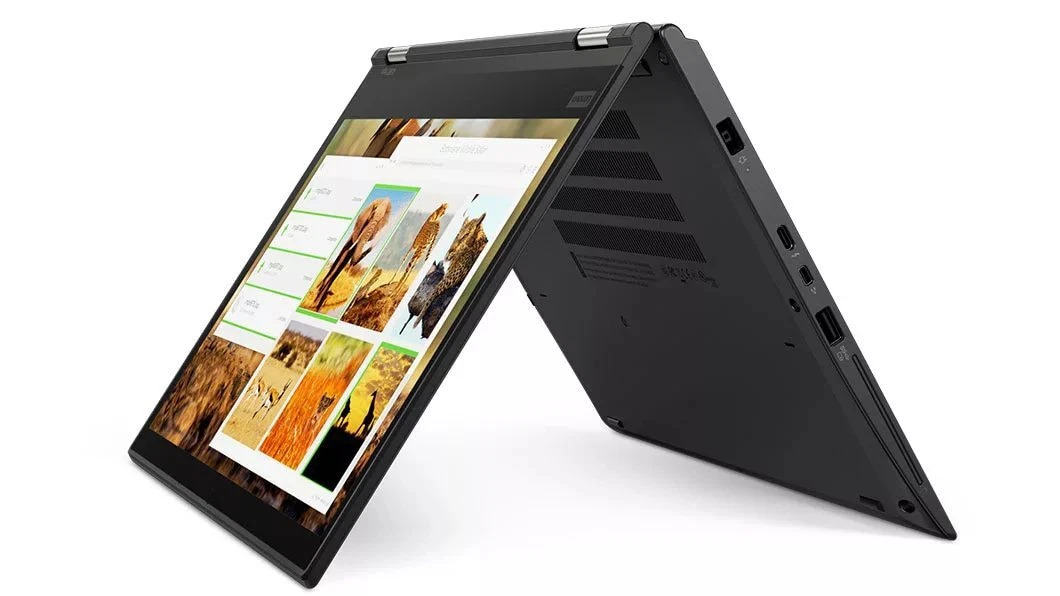

  • Tent Mode: Inverted V shape for presentations and media viewing
  • Stand Mode: Display facing outwards for collaboration and sharing
• Design Distinctions from X390:
  • 360-degree hinge enables convertible functionality
  • Touchscreen display required for Yoga models
  • Slightly different chassis to accommodate hinge mechanism
  • Active pen support for digital inking

4. Premium Materials & Build Quality

• Chassis Construction:
  • Top cover: Aluminum with textured finish
  • Bottom cover: Magnesium alloy
  • Display cover: Aluminum with anti-reflective coating
  • Palm rest: Glass-fiber reinforced plastic
• Durability Features:
  • Military-grade testing (MIL-STD-810G certified)
  • Spill-resistant keyboard with drainage channels
  • Reinforced corners and impact-resistant materials
  • Corrosion-resistant coatings on metal components
• Dimensions & Weight:
  • Height: 0.70" (17.8 mm)
  • Width: 12.2" (309.9 mm)
  • Depth: 8.5" (217.0 mm)
  • Weight: 3.0 lbs (1.36 kg) - slightly heavier than non-Yoga X390

5. ThinkPad Input Excellence

• Keyboard:
  • Legendary ThinkPad keyboard with 1.8mm key travel
  • Spill-resistant design with drainage system
  • White LED backlight (two-level illumination)
  • Auto-disables in tablet mode for palm rejection
  • Excellent tactile feedback for extended typing sessions
• TrackPoint & Trackpad:
  • Classic red TrackPoint pointing stick
  • Three dedicated physical buttons for TrackPoint
  • Precision glass trackpad with multi-touch gestures
  • Microsoft Precision Touchpad certified
• ThinkPad Pen Pro:
  • Active pen with 2,048 pressure levels
  • Palm rejection technology for natural writing/drawing
  • Two programmable buttons for customization
  • Battery-powered (AAAA battery)

6. Connectivity & Audio

• Port Selection:
  • 2x Thunderbolt 3 (USB-C, 40Gbps, Power Delivery, DisplayPort)
  • 2x USB-A 3.1 Gen 1 (5Gbps)
  • HDMI 1.4b
  • Headphone/microphone combo jack
  • Optional: MicroSD card reader
• Wireless Connectivity:
  • Wi-Fi 5 (802.11ac) 2x2 with dual-band support
  • Bluetooth 5.0
  • Optional: 4G LTE WWAN with eSIM support
  • Optional: Intel vPro with AMT for enterprise management
• Audio System:
  • Dolby Audio Premium speakers
  • Dual-array far-field microphones
  • Noise cancellation for voice calls
  • Audio tuned for both media consumption and conference calls

7. Security & Manageability

• Hardware Security:
  • Discrete TPM 2.0 chip
  • Fingerprint reader (fast, reliable authentication)
  • IR camera with Windows Hello facial recognition
  • Camera privacy shutter (ThinkShutter physical cover)
  • Kensington lock slot
• Software Security:
  • ThinkShield comprehensive security suite
  • Lenovo Vantage for system management
  • Compatible with enterprise management solutions
  • Secure boot with measured launch technology
• Webcam Features:
  • 720p HD webcam with ThinkShutter privacy cover
  • IR camera for Windows Hello (optional on some models)
  • Dual microphones with noise reduction

8. Battery & Power Management

• Battery System:
  • Integrated 48Wh lithium-polymer battery
  • Battery life: 8-10 hours typical business use
  • Rapid Charge: 80% in 1 hour
  • Battery conservation mode for extended lifespan
• Power Management:
  • Lenovo Vantage power optimization
  • Intelligent cooling for different usage modes
  • Power adapter: 65W USB-C (works with either Thunderbolt port)
  • Can charge via any Thunderbolt 3 port

Performance Analysis

CPU & System Performance

• CPU Performance (Geekbench 5):
  • Single-core: 1,000-1,100 points
  • Multi-core: 3,200-3,600 points
  • Approximately 10-15% faster than i5-8265U
• Real-World Performance Advantages:
  • Faster application launches and file operations
  • Better performance in CPU-intensive tasks
  • Improved responsiveness in heavy multitasking scenarios
• Professional Workload Capabilities:
  • Excellent for business applications and Office 365
  • Good for software development and light virtualization
  • Capable of photo editing and light video work
  • Great for presentations with tablet/tent modes

Comparison with Standard X390

Key Differences

• Form Factor:
  • X390 Yoga: Convertible 2-in-1 with 360-degree hinge
  • Standard X390: Traditional clamshell laptop
• Display:
  • X390 Yoga: Touchscreen required, active pen support
  • Standard X390: Non-touch options available
• Input:
  • X390 Yoga: Includes or supports active pen
  • Standard X390: No pen support
• Weight:
  • X390 Yoga: 3.0 lbs (1.36 kg)
  • Standard X390: 2.85 lbs (1.29 kg)

Pros & Cons

Advantages

• Versatile 2-in-1 design with four usage modes
• Premium i7 performance with 16GB RAM for demanding workloads
• Generous 512GB storage for applications and data
• ThinkPad keyboard excellence maintained in convertible form
• Active pen support for digital inking and annotations
• Dual Thunderbolt 3 ports for high-speed connectivity
• Comprehensive security features (ThinkShield suite)
• MIL-STD-810G durability in convertible form factor

Limitations

• Soldered RAM (fixed at 16GB, not upgradable)
• Display only 300 nits (dim for outdoor use)
• Battery life reduced when using touch/pen features
• Integrated graphics only (not for gaming/3D work)
• Slightly heavier than standard X390
• Fan noise can be noticeable under load
• Pen not always included (check configuration)

Target User Profiles

Ideal Users

• Business Presenters: Benefit from tent/tablet modes for client meetings
• Creative Professionals: Use pen for sketching, annotations, design reviews
• Executives & Consultants: Need versatile device for different work scenarios
• Note-takers & Students: Digital inking for notes and annotations
• Frequent Travelers: Tablet mode for media consumption on flights
• Healthcare/Field Professionals: Tablet functionality for patient/client interactions

Current Market Value (2024)

• Original Price (2019): $1,500-$1,800 for this configuration
• 2024 Market Price: $450-$650
  • Base condition: $450-550
  • Good condition with pen: $500-600
  • Excellent condition with accessories: $550-650
• Value Assessment:
  • Good value for premium business convertible
  • i7 and 16GB RAM provide performance longevity
  • 512GB storage reduces immediate upgrade needs

Final Recommendation

Rating: 8.5/10 for Convertible Users | 7.5/10 for Traditional Laptop Users

The ThinkPad X390 Yoga with Core i7, 16GB RAM, and 512GB SSD represents an excellent premium business convertible that balances performance, versatility, and ThinkPad quality. This configuration addresses the common limitations of convertibles by providing sufficient RAM and storage for professional use while maintaining the flexibility that makes 2-in-1 devices valuable.

The i7 processor provides a tangible performance boost over i5 models, particularly in CPU-intensive tasks, while the 16GB RAM ensures smooth multitasking even with demanding applications. The 512GB SSD offers ample space for most professional users without immediate need for upgrade.

The convertible functionality is well-implemented, with a sturdy hinge that enables stable use in all modes. The inclusion of active pen support (though sometimes sold separately) adds significant value for note-takers, presenters, and creative professionals. Despite being a convertible, it maintains the legendary ThinkPad keyboard experience—a rare achievement in the 2-in-1 market.

The main limitations are shared with most convertibles: slightly reduced battery life compared to clamshell counterparts, display brightness that may be insufficient for outdoor use, and the premium price for convertible functionality. The soldered RAM, while generous at 16GB, eliminates future upgrade options.

At $500-$600 on the current market, this X390 Yoga configuration offers good value for professionals who genuinely benefit from convertible functionality. The combination of ThinkPad build quality, i7 performance, and versatile form factor creates a compelling package for mobile professionals.

Bottom line: If you need a premium business convertible for presentations, note-taking, or creative work and value ThinkPad quality, this X390 Yoga at $550 or less is an excellent choice. If you primarily need a traditional laptop, the standard X390 may offer better value. Ensure the active pen is included or budget for its purchase separately.

Ideal buyer: Business professional, consultant, creative, or executive who regularly uses tablet functionality for presentations, annotations, or client interactions and values both performance and versatility in a premium package.
